Запчасти Case IH PUMA 145 (35.204.05[01]) - VAR - 743685, 333845 - MECHANICAL REAR REMOTE CONTROL VALVES - MOUNTING & ATTACHMENTS - 4 VALVE (35) - HYDRAULIC SYSTEMS

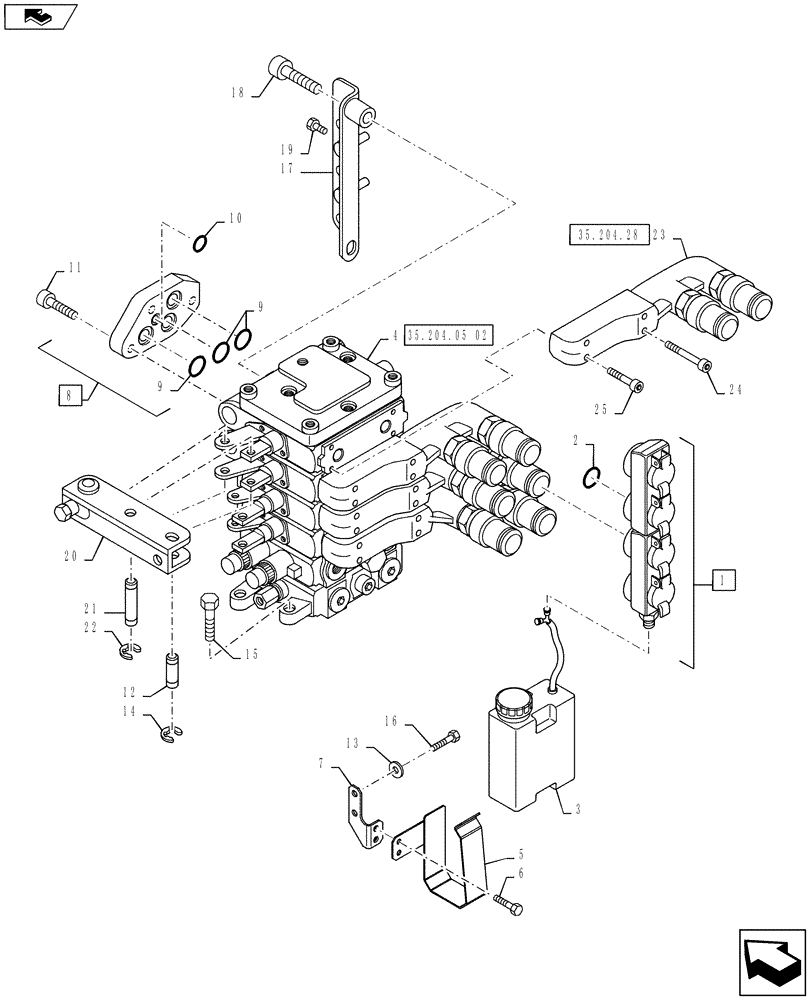

Схема запчастей Case IH PUMA 145 - (35.204.05[01]) - VAR - 743685, 333845 - MECHANICAL REAR REMOTE CONTROL VALVES - MOUNTING & ATTACHMENTS - 4 VALVE (35) - HYDRAULIC SYSTEMS
22
14
11
15
home
21
5
17
7
23
2
10
9
8
18
6
25
20
12
1
16
35.204.05 02
4
19
35.204.28
3
24
13
9

Артикул

Название

Примечание

Количество

1

84293792

DUST CAP

Incl 2

2шт.

2

14454580

O-RING,34.65mm ID x 1.78mm

4шт.

3

84284864

RESERVOIR, HYDRAULIC

1шт.

4

87311423

CONTROL VALVE

1шт.

5

84312030

SUPPORT

1шт.

6

10902121

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.

7

84311423

SUPPORT

1шт.

8

5199101

COVER

Incl 9, 10

1шт.

9

81862872

O-RING,2.4mm Thk x 19.6mm ID

3шт.

10

81862879

O-RING,2.4mm Thk x 7.6mm ID

1шт.

11

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

3шт.

12

5113008

PIN,8mm OD x 26mm L

4шт.

13

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

14

11065676

SNAP RING,M8, Ext

8шт.

15

14307524

HEX SOC SCREW,M10 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

16

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

17

87358965

STOP

1шт.

18

14306721

HEX SOC SCREW,M8 x 48mm, Cl 8.8

1шт.

19

14306221

HEX SOC SCREW,M8 x 16mm, Cl 8.8, Full Thd

1шт.

20

87358094

LEVER

4шт.

21

5193177

PIN,6mm OD x 29.48mm L

4шт.

22

11063971

SPRING CLIP,M6

8шт.

23

87381965

QUICK MALE COUPLING

1шт.

24

14305671

SCREW,M6 x 35mm, Cl 12.9

2шт.

25

14306071

SCREW,M6 x 50mm, Cl 12.9

2шт.

Выбрано товаров: 25
