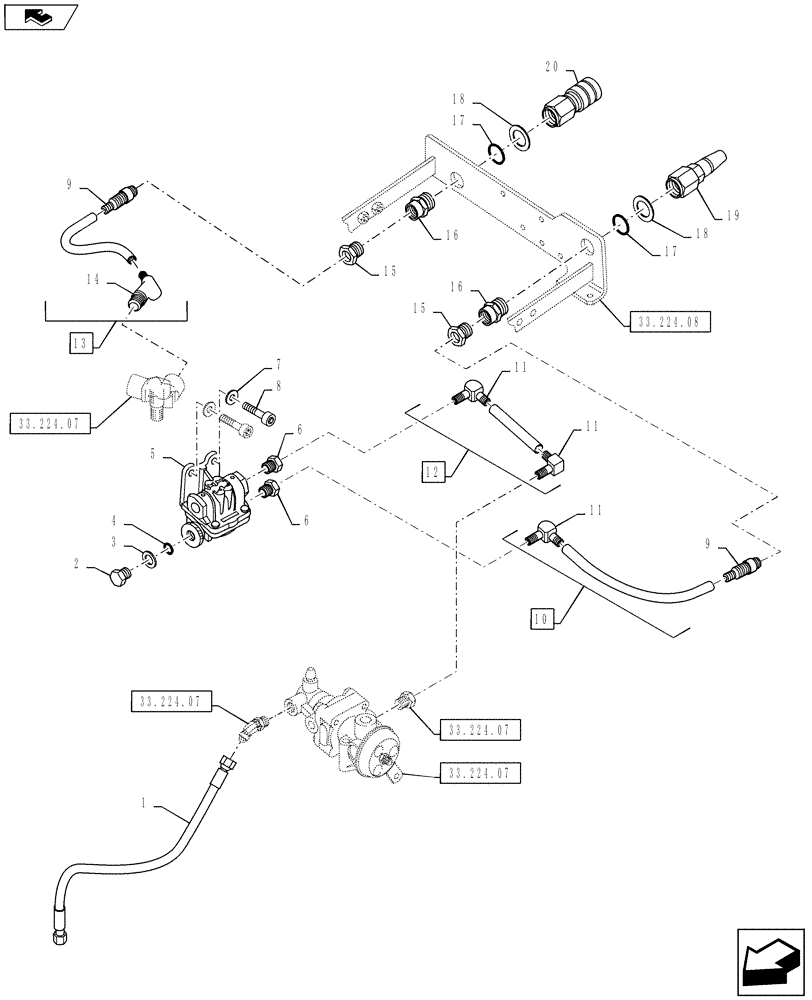

Запчасти Case IH PUMA 145 (33.224.12) - VAR - 332739, 743694 - PNEUMATIC TRAILER BRAKE (UK) - QUICK HITCH AND PIPES (33) - BRAKES & CONTROLS

1

84149763

HYDRAULIC HOSE,425.00mm

1шт.

2

84157695

PLUG,Hex, M16 x 1.5 x 17mm L

1шт.

3

86010343

WASHER,Backing, 16.10mm, 19.50mm ID x 22.00mm OD x 2.60mm

1шт.

4

87392491

O-RING,2.5mm Thk x 14mm ID

1шт.

5

84157669

VALVE

1шт.

6

87588079

HYD CONNECTOR,M16 x 1.5

2шт.

7

10516679

LOCK WASHER,Helical Spring, 8.20mm ID x 14.80mm OD x 2.20mm, C72, ZNM

2шт.

8

14306324

HEX SOC SCREW,M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

9

87588082

HYD CONNECTOR,M12 x 1.5

2шт.

10

84233103

FLEXIBLE HOSE,12.00mm OD x 265.00mm

Incl 9, 11

1шт.

11

87588080

90 ELBOW,NG8 x 12mm D

3шт.

12

84157672

FLEXIBLE HOSE,12.00mm OD x 123.00mm

Incl 11

1шт.

13

87702812

HOSE,12.00mm OD x 315.00mm

Incl 9, 14

1шт.

14

87642190

HYD CONNECTOR

1шт.

15

82034157

ADAPTER

2шт.

16

87679177

ADAPTER

2шт.

17

87679174

O-RING,2.4mm Thk x 20.3mm ID, 70 Duro

2шт.

18

87679173

BACK-UP RING,22.10mm, 25.80mm ID x 27.00mm OD x 2.50mm

2шт.

19

87679176

PUSH-PULL COUPLING

Yellow

1шт.

20

87679175

PUSH-PULL COUPLING

Red

1шт.
