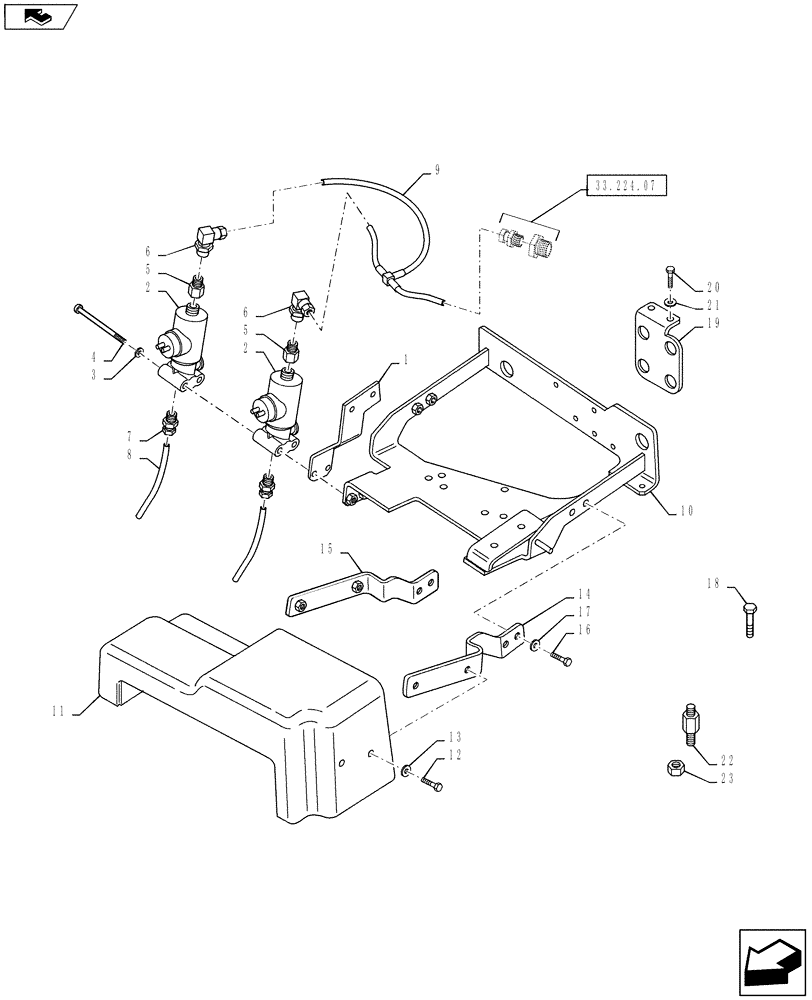

Запчасти Case IH PUMA 145 (33.224.08) - VAR - 332727, 743692, 332737, 743693, 332739, 743694 - PNEUMATIC TRAILER BRAKE - CONTROL VALVE AND RELEVANT PARTS (33) - BRAKES & CONTROLS

1

84233091

SUPPORT

1шт.

2

84359255

SOLENOID VALVE,1.41A, 12 VDC,

Pneumatic

2шт.

3

10516679

LOCK WASHER,Helical Spring, 8.20mm ID x 14.80mm OD x 2.20mm, C72, ZNM

2шт.

4

14302124

HEX SOC SCREW,M8 x 1.25 x 100mm, Cl 8.8

2шт.

5

87678127

HYD CONNECTOR,M10 x 1, M12 x 1.5

2шт.

6

87678122

HYD CONNECTOR,M10 x 1

2шт.

7

82006828

ADAPTER

2шт.

8

82019793

HOSE,6.00mm OD x 70.00mm

2шт.

9

84358408

FLEXIBLE HOSE

1шт.

10

84359006

SUPPORT

Italy and UK, VAR 743692, 332737, 743694, 332739

1шт.

10

84360052

SUPPORT

Universal, VAR 743692, 332727

1шт.

11

84149758

COVER

1шт.

12

86624996

BOLT,Hex Flange, M6 x 16.00mm, Cl 8.8, BZN

4шт.

13

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

14

84174772

SUPPORT

LH

1шт.

15

84174774

SUPPORT

RH

1шт.

16

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

4шт.

17

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

4шт.

18

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

19

84124500

BRACKET

1шт.

20

83962783

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 4.8, Full Thd

2шт.

21

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

22

84389143

SPACER

Universal, VAR 743693, 332727

4шт.

23

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

Universal, VAR 743692, 332727

4шт.
