Запчасти Case IH PUMA 145 (33.224.06) - VAR - 332727, 743692, 332737, 743693, 332739, 743694 - PNEUMATIC TRAILER BRAKE - LINES (33) - BRAKES & CONTROLS

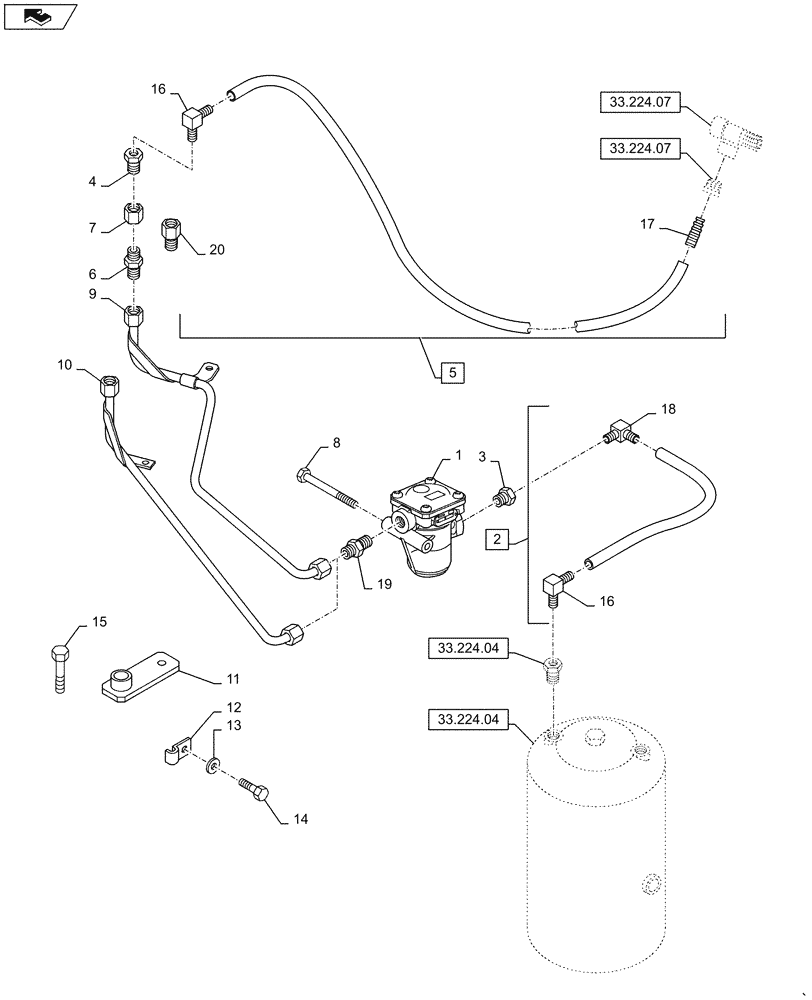

Схема запчастей Case IH PUMA 145 - (33.224.06) - VAR - 332727, 743692, 332737, 743693, 332739, 743694 - PNEUMATIC TRAILER BRAKE - LINES (33) - BRAKES & CONTROLS
home
33.224.07
12
33.224.04
17
33.224.04
16
20
13
9
8
15
19
18
7
1
6
1
14
5
3
1
4
33.224.07
16
2
10

Артикул

Название

Примечание

Количество

1

84372823

VALVE

Pressure Limiting

1шт.

2

84181238

TUBE,12.00mm OD x 260.00mm

Reservoir to Dryer, Incl 16 and 18

1шт.

3

87588079

HYD CONNECTOR,M16 x 1.5

1шт.

4

82036156

FITTING,M22 x 1.5 x NG12

1шт.

5

84174057

TUBE,12.00mm OD x 750.00mm

Valve to DLCV, Incl 16 and 17

1шт.

6

84181658

HYD CONNECTOR

, Serial Range: -C7198

1шт.

7

84174059

HYD CONNECTOR

, Serial Range: -C7198

1шт.

8

16044821

SCREW,Hex, M8 x 80mm, Cl 8.8

1шт.

9

84174051

TUBE

Valve to DLCV, Puma 160, Serial Range: -C7159

1шт.

9

84486590

TUBE

Valve to DLCV, Puma 160, Start Serial: D7159

1шт.

10

84338178

HYD TUBE

Valve to DLCV, Puma 130, 145, Serial Range: -C7159

1шт.

10

84486585

HYD TUBE

Valve to DLCV, Puma 130, 145, Start Serial: D7159

1шт.

11

84317379

BRACKET

2шт.

12

5178447

BRACKET

2шт.

13

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

2шт.

14

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

2шт.

15

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

16

82038479

90 ELBOW,NG12 x 12mm D

2шт.

17

87588082

HYD CONNECTOR,M12 x 1.5

1шт.

18

87588080

90 ELBOW,NG8 x 12mm D

1шт.

19

84382417

HYD CONNECTOR,M16 x 1.5 x 38mm L

1шт.

20

84425324

HYD CONNECTOR,M22 x 1.5 x 40mm L

, Start Serial: D7198

1шт.

Выбрано товаров: 22
