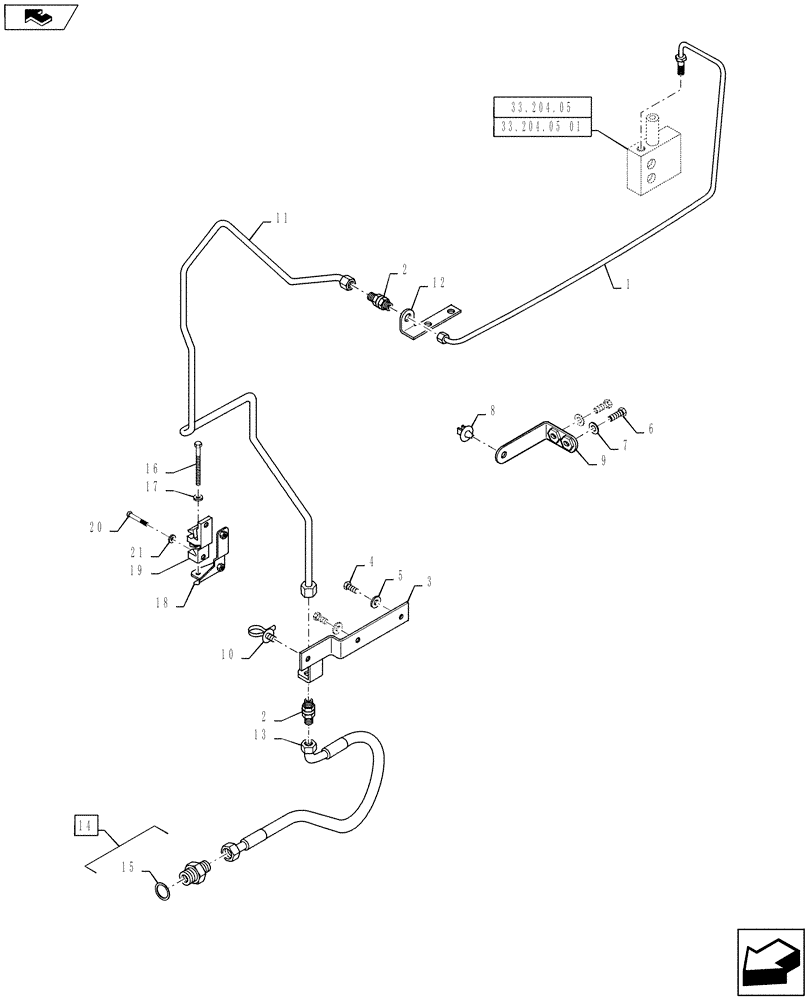

Запчасти Case IH PUMA 145 (33.204.07) - VAR - 330427, 330426 - FRONT AXLE BRAKE LINES (33) - BRAKES & CONTROLS

1

84202500

TUBE

1шт.

2

82016624

ADAPTER

2шт.

3

84143489

BRACKET

1шт.

4

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

5

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

6

10977821

BOLT,M5 x 19.65mm OAL, Cl 8.8

2шт.

7

14496301

WASHER,5.3mm ID x 10mm OD x 1mm Thk

2шт.

8

87609144

CLIP,6mm Hose

2шт.

9

84342883

BRACKET

1шт.

10

82033028

CABLE TIE,170mm L

1шт.

11

84342873

BRAKE LINE

1шт.

12

87702766

BRACKET

1шт.

13

87609294

FLEXIBLE HOSE,590.00mm

1шт.

14

82015298

HYD CONNECTOR,1/2"-20 - M18 x 1.5

Incl 15

1шт.

15

83999938

SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk

1шт.

16

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

17

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

1шт.

18

84176930

BRACKET

1шт.

19

84177383

SUPPORT

1шт.

20

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

1шт.

21

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

1шт.
