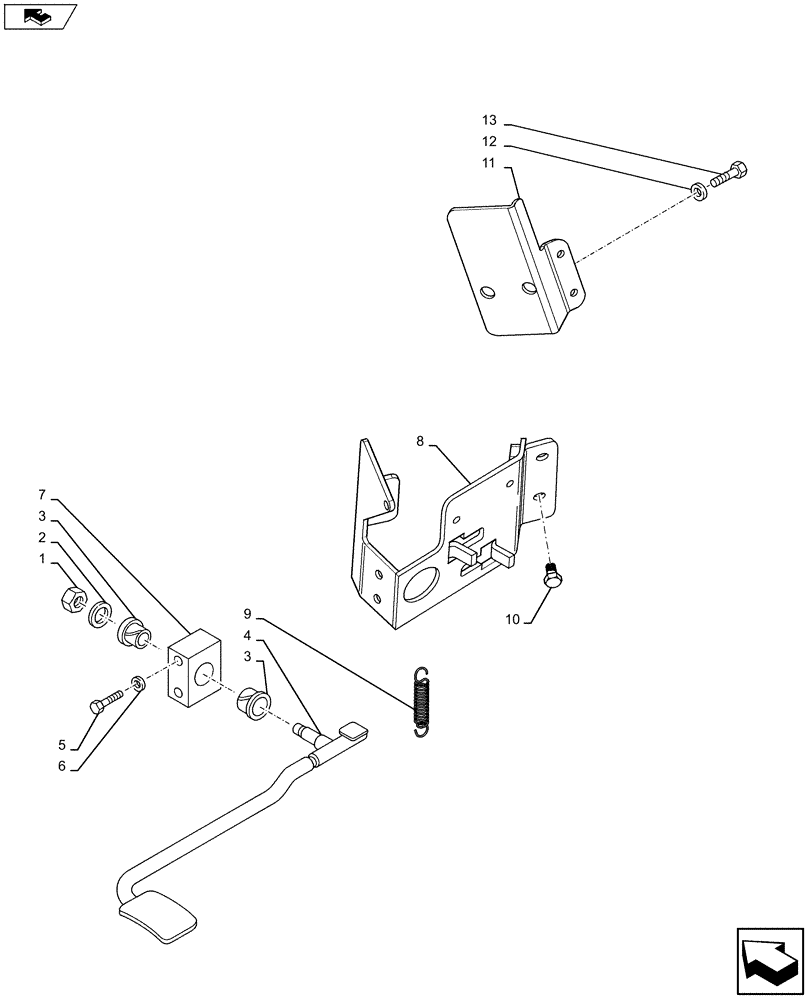

Запчасти Case IH PUMA 145 (33.202.01[01A]) - VAR - 330468 - EXHAUST BRAKE - PEDAL, LEVER & BRACKET - D9015 (33) - BRAKES & CONTROLS

1

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

1шт.

2

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

3

82002289

BUSHING,12mm ID x 13.6mm OD x 12.8mm L

2шт.

4

87640782

PEDAL

1шт.

5

412555

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

6

14496507

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

7

47057310

CONNECTING BLOCK

1шт.

8

47370313

BRACKET

1шт.

9

47413742

SPRING,21mm OD x 84mm L

1шт.

10

87020138

BOLT,Hex, M6 x 16mm, Cl 8.8

3шт.

11

47413734

PROTECTOR

1шт.

12

12647678

WASHER,6.45mm ID x 16mm OD x 2mm Thk

2шт.

13

10902021

BOLT,Hex, M6 x 12mm, Cl 8.8

2шт.
