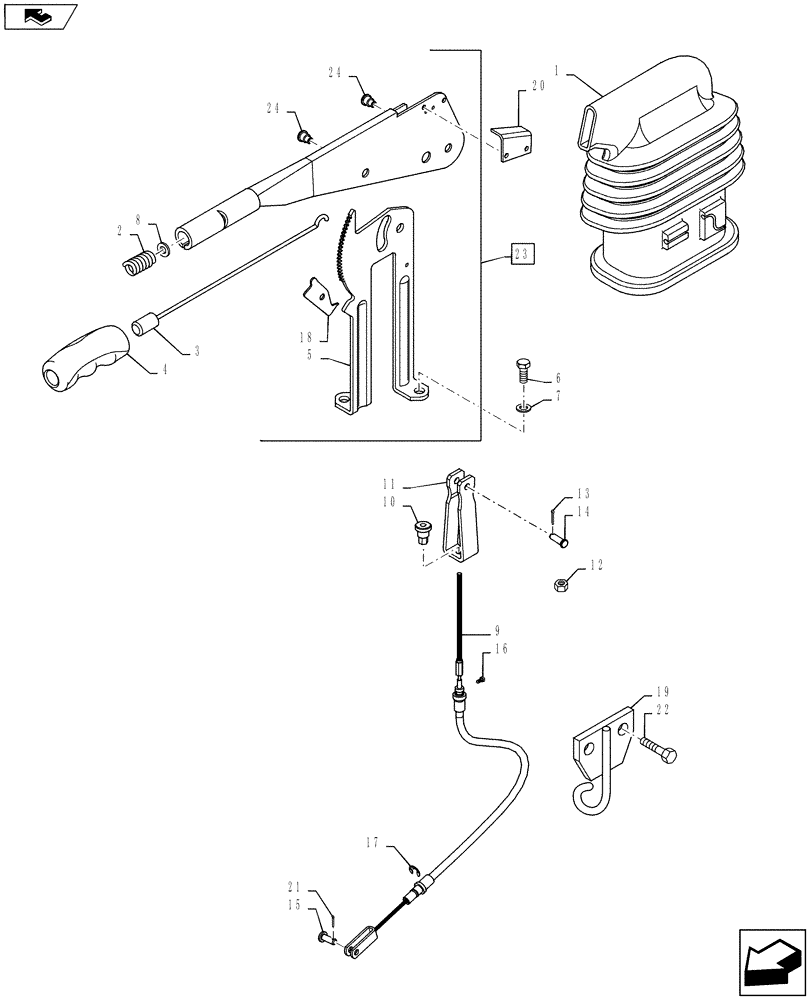

Запчасти Case IH PUMA 145 (33.110.03) - VAR - 330083 - ELECTRONIC PARK LOCK - HANDBRAKE CONTROL (33) - BRAKES & CONTROLS

1

84213451

BOOT

Only for VAR 330083

1шт.

2

84199076

SPRING,11.25mm OD x 44.5mm L

1шт.

3

81870377

BUTTON

1шт.

4

81866090

HANDLE GRIP

1шт.

5

84174325

SUPPORT

1шт.

6

11106224

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

7

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

8

81866092

WASHER,5.5mm ID x 13.4mm OD x 1.2mm Thk

1шт.

9

84140203

BOWDEN CONTROL

Only for VAR 330083

1шт.

10

82000974

NUT,Adj., M8, 1.25 Pitch, 23.00mm High, Zinc

Only for VAR 330083

1шт.

11

84140224

CLEVIS

1шт.

12

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

Only for VAR 330083

1шт.

13

81813880

COTTER PIN,3/32" x 3/4"

1шт.

14

83902558

PIN,3/8" x 1.312"

1шт.

15

10033411

PIN,10mm OD x 27mm L

Only for VAR 330083

1шт.

16

87305546

SCREW,Phillips Drive, Oval HD, M5 x 10mm, Cl 4.8

Only for VAR 330083

1шт.

17

11087374

CIRCLIP,M13

Only for VAR 330083

1шт.

18

82863025

PAWL,4.5mm Thk

1шт.

19

82034369

SLIDE GUIDE

1шт.

20

84199077

PROTECTION PLATE

1шт.

21

10766901

COTTER PIN,M3.2 x 25

Only for VAR 330083

1шт.

22

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

23

84174329

BRAKE LEVER

Incl 2, 3, 4, 5, 8, 18, 24

1шт.

24

82000812

PIN,7.8mm OD x 7.4mm L

2шт.
