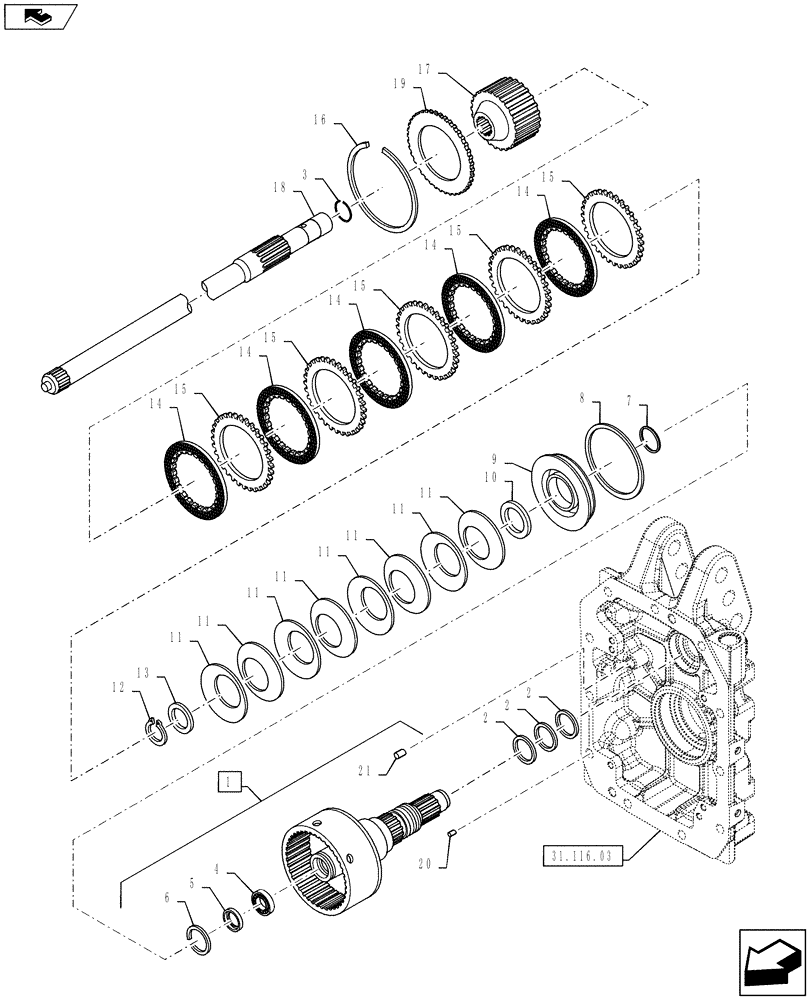

Запчасти Case IH PUMA 145 (31.116.06) - VAR - 390801, 332801, 330801, 332805, 330800 - PTO CLUTCH - CLUTCH & DISC ASSY (31) - IMPLEMENT POWER TAKE OFF

1

87374219

MAIN SHAFT,26T, 18T, 34T, 224.5mm L

540/750/1000 RPM, Std Build and VAR 332801, 332805, Incl 4 - 6, 20, 21

1шт.

1

87305531

MAIN SHAFT,26T, 18T, 220mm L

540/1000 RPM, VAR 330800, Incl 4 - 6, 20, 21

1шт.

2

5175983

SEALING RING,46mm ID

3шт.

3

13398576

SNAP RING,M40, Int

1шт.

4

5138952

NEEDLE BEARING,Needle, 25mm ID x 32mm OD x 26mm W

1шт.

5

5182702

GASKET,25mm ID x 33mm OD x 4mm Thk

1шт.

6

5182717

SNAP RING,1.5mm Thk

1шт.

7

5162252

GASKET,68mm ID x 75.5mm OD x 3.2mm Thk

1шт.

8

5143775

SEAL,128.55mm ID x 136.06mm OD x 3.2mm Thk

1шт.

9

5198547

PISTON

1шт.

10

5182696

PISTON RING,56mm ID x 72.99mm OD x 3mm Thk

1шт.

11

5168346

BELLEVILLE WASHER,56mm ID x 80mm OD x 3.3mm Thk

8шт.

12

5191305

CIRCLIP,54mm ID

1шт.

13

5191304

RETAINER CUP,55mm ID x 66mm OD x 3mm Thk

1шт.

14

5163844

CLUTCH DRIVING PLATE,99mm ID x 140mm OD x 1.7mm Thk

Square Pattern

7шт.

15

5173295

CLUTCH DISC,99mm ID x 152.6mm OD x 2.2mm Thk

7шт.

16

5162251

CIRCLIP,142.5mm ID

1шт.

17

87374253

HUB,Z32

PTO Clutch Plates, Std Build and VAR 332801, 332805

1шт.

17

5198672

HUB,Z32

PTO Clutch Plates, VAR 330800

1шт.

18

87372761

PTO SHAFT,674mm L

1шт.

19

5198545

CLUTCH PLATE,89mm ID x 152.6mm OD x 7.5mm Thk

1шт.

20

14536490

PLUG,8.00mm Dia x 15.70mm L

1шт.

21

14536590

PLUG,10.00mm Dia x 19.80mm L

1шт.
