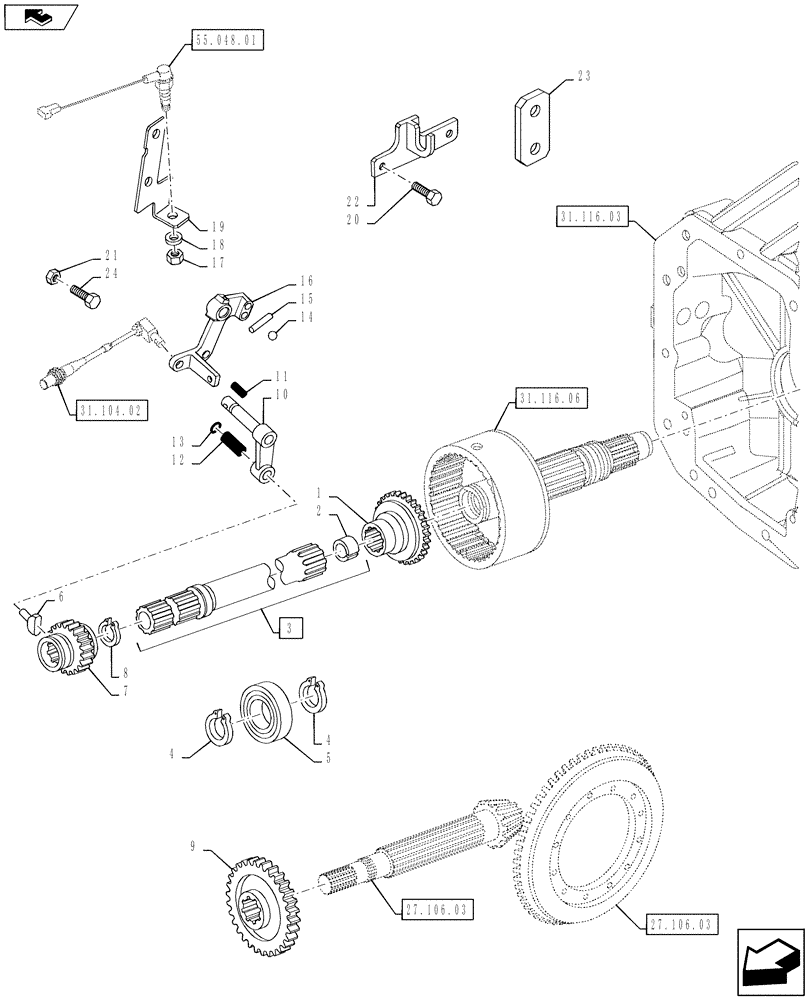

Запчасти Case IH PUMA 145 (31.116.05) - VAR - 332802 - PTO W/ GROUND SPEED - LEVER, GEARS & SHAFT (31) - IMPLEMENT POWER TAKE OFF

1

5198546

HUB,50T

1шт.

2

5107725

BUSHING,31.99mm ID x 36mm OD x 25mm L

1шт.

3

87373863

PTO SHAFT

Incl 2

1шт.

4

11062476

SNAP RING,M90, Int

2шт.

5

26794660

BALL BEARING,50.00mm x 90.00mm x 20.00mm

1шт.

6

4984096

CONTROL LEVER,10mm OD x 40mm L

Control

1шт.

7

5153151

GEAR,18T, 24T

1шт.

8

11069376

SNAP RING,M50, Ext

1шт.

9

5164890

DRIVING GEAR,Z47

1шт.

10

87372463

LEVER & PIN ASSY

1шт.

11

4994342

SPRING,8mm OD x 30mm OAL

1шт.

12

5139088

SPRING,22mm OD x 42mm L

1шт.

13

14456980

O-RING,10.77mm ID x 2.62mm

1шт.

14

20063390

BALL,8.73mm OD

1шт.

15

13942670

ROLL PIN,M6 x 32, Coiled

1шт.

16

87561306

CONTROL LEVER

1шт.

17

10718114

THIN NUT,Thin, M16, 1.00mm Pitch, Cl 04, DAC

1шт.

18

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

1шт.

19

87598884

HOLDER

1шт.

20

11422324

BOLT,Hex, M14 x 1.5 x 30mm, Cl 8.8

2шт.

21

16104414

LOCK NUT,M8 x 1.25

1шт.

21

16100814

NUT,M8, Cl 8, DAC

1шт.

22

87559176

BRACKET

2шт.

23

87598879

HOLDER

1шт.

24

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

24

16043724

BOLT,Hex, M8 x 1.25 x 28mm, Cl 8.8, Full Thd

1шт.
