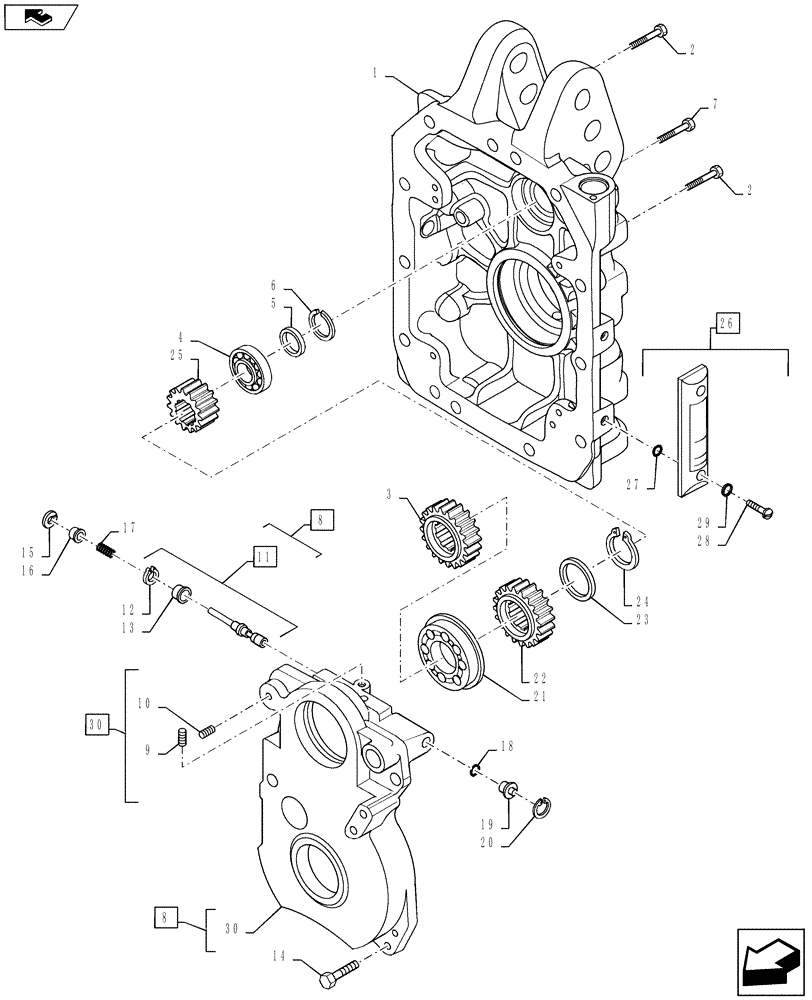

Запчасти Case IH PUMA 145 (31.116.03) - VAR - 332801, 332805, 390801 - PTO 540/750/1000 RPM & 540E/1000/1000E RPM - HOUSING, GEARS & SUPPORT (31) - IMPLEMENT POWER TAKE OFF

1

47131252

HOUSING

Puma 130, 145

1шт.

1

84303022

HOUSING

Puma 160

1шт.

2

11254124

BOLT,Hex, M16 x 1.5 x 80mm, Cl 8.8

4шт.

3

87472074

GEAR,Z28

Std Build and VAR 332801

1шт.

3

84288614

GEAR,Z29

1000E RPM, VAR 332805

1шт.

4

5151460

ROLLER BEARING,35mm ID x 72mm OD x 17mm W

1шт.

5

5154308

THRUST WASHER,35.1mm ID x 43mm OD x 2mm Thk

1шт.

6

5154307

SNAP RING,M35

1шт.

7

15981024

SCREW,Hex, M16 x 1.5 x 55mm, Cl 8.8

7шт.

8

87673377

COVER

Incl 11, 30

1шт.

9

10839710

DOWEL,M10 x 15.00mm

2шт.

10

14326001

PLUG,Hex Skt, M10 x 1.25 x 11mm, Cl 4.8

3шт.

11

NSS

NOT SOLD SEPARAT

Valve, Incl in 8

1шт.

12

13397370

SNAP RING,M8, Int

1шт.

13

47128538

SPACER

1шт.

14

15540624

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

4шт.

15

13420576

SNAP RING,M16, Int

1шт.

16

47127951

CAP COVER

1шт.

17

47123788

SPRING,15mm OD x 87.5mm L

1шт.

18

14453182

O-RING,0.07" Thk x 0.489" ID, -14, Cl 9, 70 Duro

1шт.

19

47128597

PLUG,6mm ID x 19mm OD x 13mm L

1шт.

20

11057776

SNAP RING,M19, Int

1шт.

21

5182640

BALL BEARING,65mm ID x 120mm OD x 23mm W

1шт.

22

5197768

GEAR,Z22

750 RPM, Puma 130 and 145, Std Build and VAR 332801

1шт.

22

87373866

GEAR,Z26

750 RPM, Puma 160, Std Build and VAR 332801

1шт.

22

84291358

GEAR

1000 RPM, VAR 332805

1шт.

23

5192262

THRUST WASHER,50.10mm ID x 60.00mm OD x 2.00mm

1шт.

24

5138419

SNAP RING,M50

1шт.

25

5193952

GEAR,Z17

540 RPM, Std Build and VAR 332801

1шт.

25

84289051

GEAR,Z19

540E RPM, VAR 332805

1шт.

26

87383494

LEVEL GAUGE

Puma 130 and 145, Incl 27 - 29

1шт.

26

87696615

LEVEL GAUGE

Puma 160, Incl 27 - 29

1шт.

27

47130060

O-RING

2шт.

28

47130059

SCREW,Pan HD, M12 x 41mm

2шт.

29

87349969

RUBBER SEAL

2шт.

30

87580869

SUPPORT

Incl 9, 10

1шт.
