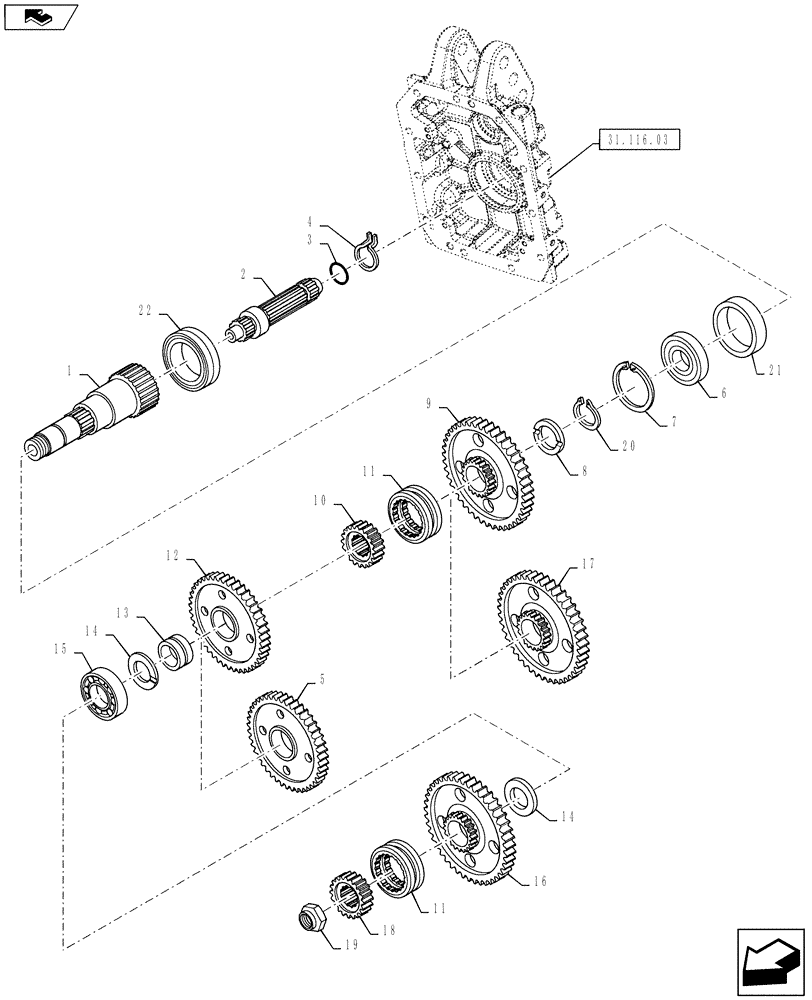

Запчасти Case IH PUMA 145 (31.116.01) - VAR - 332801, 390801 - PTO 540/750/1000 RPM - SHAFT & GEARS (31) - IMPLEMENT POWER TAKE OFF

1

47131255

DRIVE SHAFT,21T, 12T, 20T, 12T

540/750/1000 RPM

1шт.

2

47130743

PTO SHAFT,6T Splines, 182mm L

540 RPM

1шт.

2

47130744

PTO SHAFT,21T, 20T, 182mm L

1000 RPM, 21 teeth, VAR 330809

1шт.

3

14459881

O-RING,2.237" ID x 2.443" OD x 0.103"

1шт.

4

87347166

SNAP RING,M45 x 3.12mm Thk, Ext

1шт.

5

87678017

GEAR,Z63

750 RPM, Puma 160

1шт.

6

26794670

BALL BEARING,65mm ID x 120mm OD x 23mm W

1шт.

7

11075976

SNAP RING,M120, Int

1шт.

8

47131733

RING,65mm ID x 88mm OD x 6.7mm Thk

1шт.

9

87578122

GEAR,Z62

540 RPM, Puma 130, 145

1шт.

10

87578128

GEAR,21T Internal / 33T External

Fixed, 540, 750

1шт.

11

87578126

SLEEVE,Z12

Sliding

2шт.

12

87578123

GEAR,Z63

750 RPM, Puma 130, 145

1шт.

13

5192401

BUSHING,40mm ID x 48mm OD x 32mm L

2шт.

14

5192170

ANTI-WRAP PLATE

2шт.

15

20943310

BALL BEARING,40mm ID x 90mm OD x 23mm W

1шт.

15

5138660

BEARING, ROLLER, CYL,40mm ID x 90mm OD x 23mm W

Puma 160

1шт.

16

87472072

DRIVEN GEAR,Z53

1000 RPM

1шт.

17

87678016

GEAR,Z62

540 RPM, Puma 160

1шт.

18

87578127

SLEEVE,Z12

Fixed

1шт.

19

5122985

NUT,Ring, M32, 1.5 Pitch

1шт.

20

5143130

SNAP RING,M60, Ext x 4mm

1шт.

21

5196487

OIL SEAL,80.00mm ID x 100.00 OD x 10.00mm

1шт.

22

47131063

SEAL,70mm ID x 95mm OD x 14mm Thk

Waterproofing, VAR 330448, 336449

1шт.
