Запчасти Case IH PUMA 145 (27.106.19) - DIFFERENTIAL GEARS WITH MECHANICAL LOCK FOR REAR AXLE (27) - REAR AXLE SYSTEM

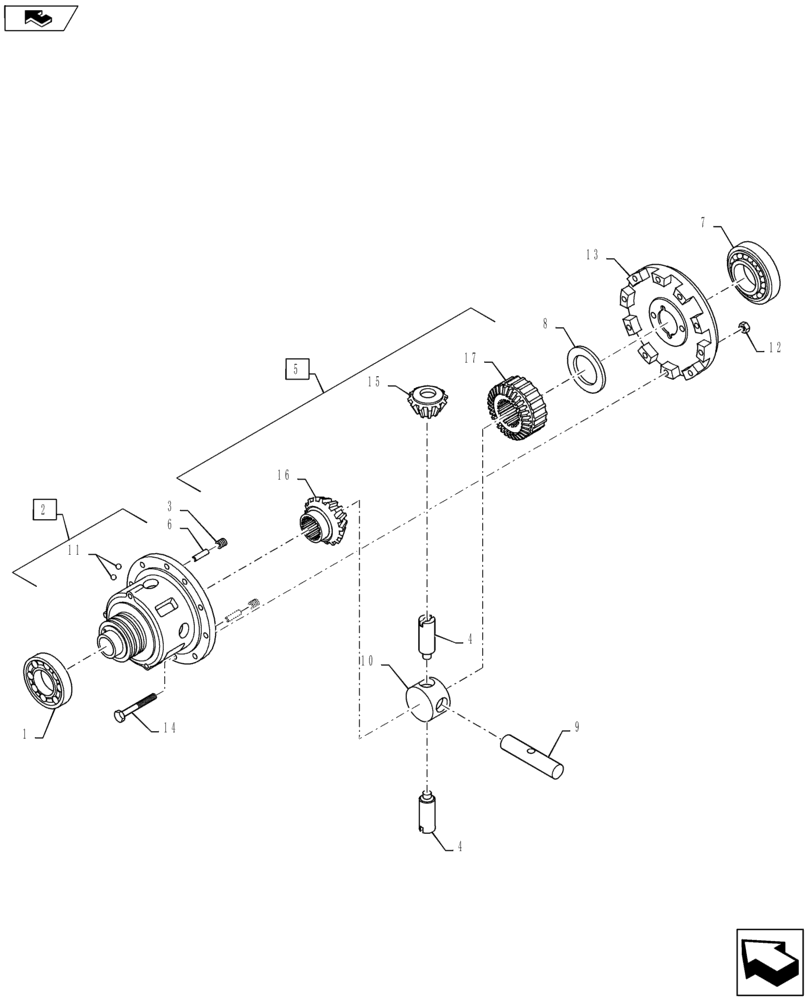

Схема запчастей Case IH PUMA 145 - (27.106.19) - DIFFERENTIAL GEARS WITH MECHANICAL LOCK FOR REAR AXLE (27) - REAR AXLE SYSTEM
10
5
2
17
1
4
16
home
9
8
11
14
12
4
6
7
13
3
15

Артикул

Название

Примечание

Количество

1

24903470

BEARING ASSY,70mm ID x 110mm OD x 25mm W

1шт.

2

5162542

HOUSING

Incl 11

1шт.

3

13809470

SET SCREW,Hex Soc, M10 x 16mm, Flat Pt

2шт.

4

47131260

PIN,27.96mm OD x 78mm L

2шт.

5

87490100

DIFFERENTIAL

Incl 15 - 17

1шт.

6

14516720

DOWEL,M7 x 70

2шт.

7

24903500

TAPERED BEARING,85mm ID x 130mm OD x 29mm W

1шт.

8

5135398

THRUST WASHER,64mm ID x 95mm OD x 2.95mm Thk

1шт.

8

44011235

THRUST WASHER,64mm ID x 95mm OD x 3mm Thk

1шт.

8

5189651

THRUST WASHER,64.00mm ID x 95.00mm OD x 3.50mm

1шт.

8

5189650

THRUST WASHER,64.00mm ID x 95.00mm OD x 3.45mm

1шт.

8

5189649

THRUST WASHER,64.00mm ID x 95.00mm OD x 3.40mm

1шт.

8

5189648

THRUST WASHER,64.00mm ID x 95.00mm OD x 3.35mm

1шт.

8

5178542

THRUST WASHER,64mm ID x 95mm OD x 2.7mm Thk

1шт.

8

5178543

THRUST WASHER,64mm ID x 95mm OD x 2.75mm Thk

1шт.

8

5138805

THRUST WASHER,64mm ID x 95mm OD x 2.9mm Thk

1шт.

8

5138804

THRUST WASHER,64mm ID x 95mm OD x 2.85mm Thk

1шт.

8

5138803

THRUST WASHER,64.00mm ID x 95.00mm OD x 2.80mm

1шт.

8

5135403

THRUST WASHER,64mm ID x 95mm OD x 3.2mm Thk

1шт.

8

5135405

THRUST WASHER,64mm ID x 95mm OD x 3.3mm Thk

1шт.

8

5135404

THRUST WASHER,64mm ID x 95mm OD x 3.25mm Thk

1шт.

8

5135402

THRUST WASHER,64mm ID x 95mm OD x 3.15mm Thk

1шт.

8

5135400

THRUST WASHER,64mm ID x 95mm OD x 3.05mm Thk

1шт.

8

5135401

THRUST WASHER,64mm ID x 95mm OD x 3.1mm Thk

1шт.

9

47131259

PIN,27.96mm OD x 164mm L

1шт.

10

5150729

SUPPORT

1шт.

11

20063460

BALL,7.14mm OD, Gr 100

2шт.

12

13598221

NUT,M14 x 1.5

10шт.

13

5162543

COVER

1шт.

14

5163988

BOLT,Hex, M14 x 1.5 x 93mm

10шт.

15

NSS

NOT SOLD SEPARAT

Pinion, Incl in 5

4шт.

16

NSS

NOT SOLD SEPARAT

LH Pinion Wheel, Incl in 5

1шт.

17

NSS

NOT SOLD SEPARAT

RH Pinion Wheel, Incl in 5

1шт.

Выбрано товаров: 33
