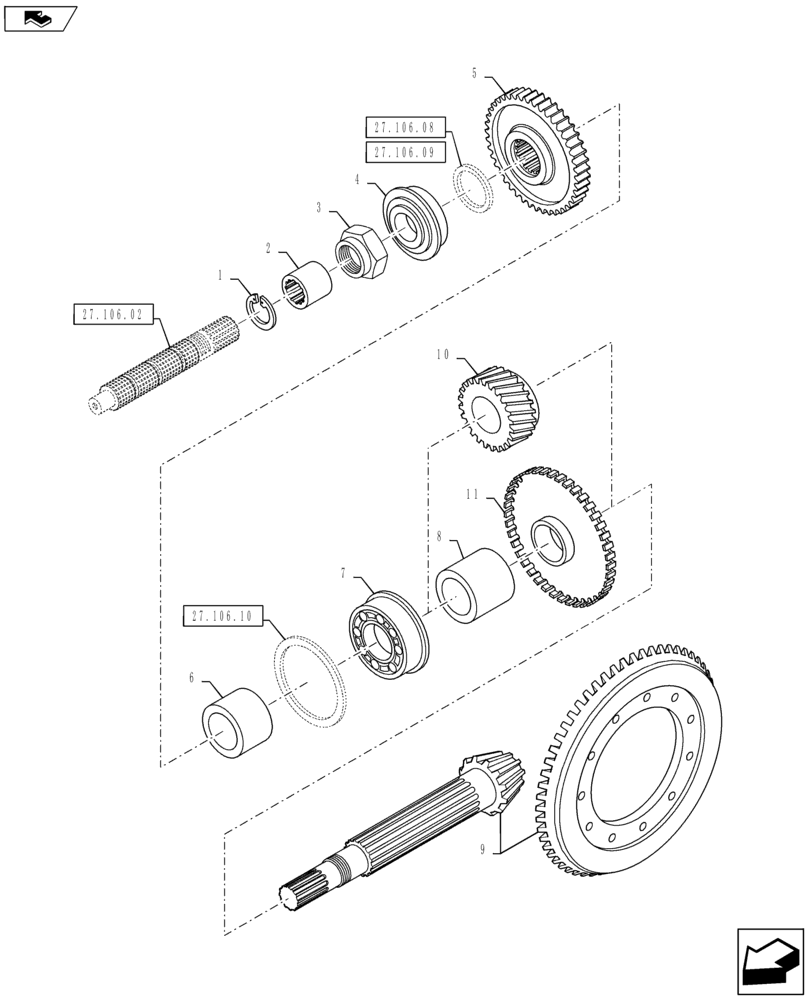

Запчасти Case IH PUMA 145 (27.106.03) - CENTRAL REDUCTION GEARS AND BEVEL GEAR PAIR (27) - REAR AXLE SYSTEM

1

11059776

SNAP RING,M38, Int

1шт.

2

5176850

SLEEVE,20T

1шт.

3

5147930

RING NUT,M45 x 1.5

1шт.

4

5138727

BEARING ASSY,45mm ID x 106mm OD x 27.25mm W

1шт.

5

5163666

DRIVING GEAR,Z43

4WD, Puma 130, 145

1шт.

5

5171890

GEAR,Z48

4WD, Puma 160

1шт.

6

5145129

SPACER,55mm ID x 70mm OD x 42.5mm L

1шт.

7

5111271

ROLLER BEARING,60mm ID x 125mm OD x 37mm W

1шт.

8

5185558

SPACER,55mm ID x 74mm OD x 79mm L

1шт.

9

5162572

BEVEL GEAR,10/43 Ratio

Ratio 10/43, Puma 130, 145

1шт.

9

87559710

BEVEL GEAR,11/43 Ratio

Ratio 11/43, Puma 160

1шт.

10

87677236

PINION,Z29

1шт.

11

5183202

GEAR,Z47

1шт.
