Запчасти Case IH PUMA 145 (27.106.02) - CENTRAL REDUCTION GEARS (27) - REAR AXLE SYSTEM

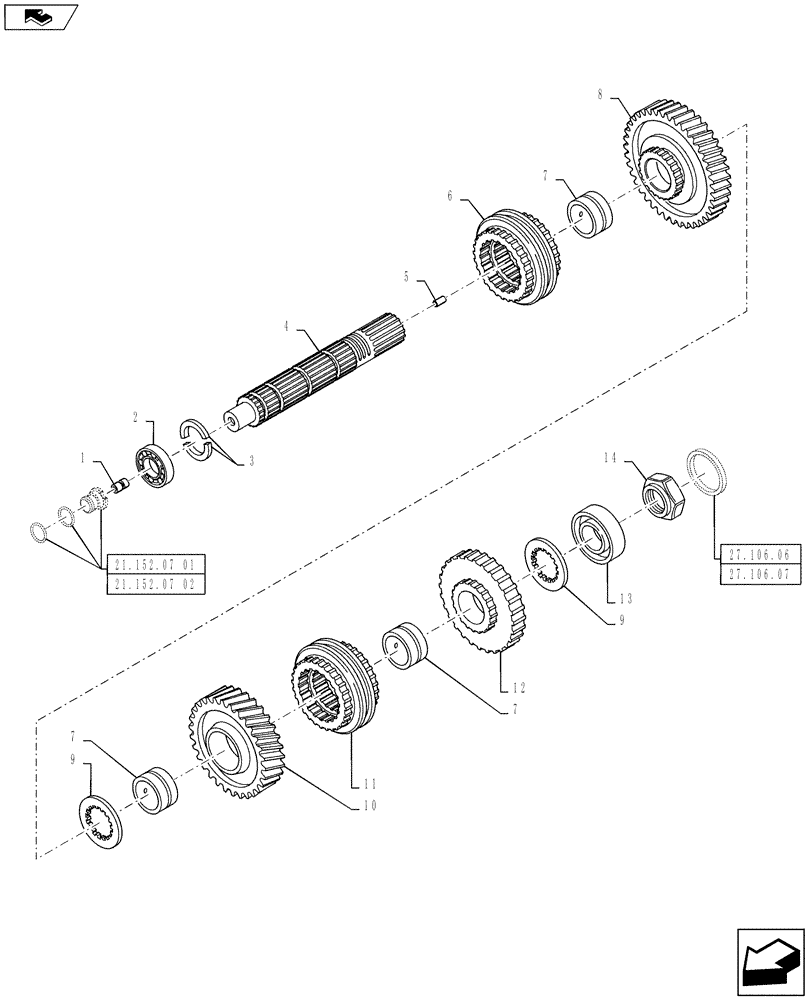

Схема запчастей Case IH PUMA 145 - (27.106.02) - CENTRAL REDUCTION GEARS (27) - REAR AXLE SYSTEM
10
8
13
9
5
21.152.07 01
27.106.07
9
2
14
1
7
3
27.106.06
7
12
home
7
21.152.07 02
6
4
11

Артикул

Название

Примечание

Количество

1

5166038

PIPE

1шт.

2

5180813

ROLLER BEARING,30mm ID x 27mm W

1шт.

3

5169085

RING,44mm ID x 56mm OD x 4mm Thk

2шт.

4

5180850

MAIN SHAFT,20T, 24T

1шт.

5

5125566

DOWEL,M14 x 1.5 x 16mm

1шт.

6

87567127

SYNCHRONIZER,24T, 50mm OD, 38T, 80mm OD

Slow, Fast

1шт.

7

5164695

BUSHING,49.4mm ID x 60mm OD x 46.6mm L

3шт.

8

5164727

DRIVEN GEAR,38T, 55T

1шт.

9

5149239

THRUST WASHER,46mm ID x 75mm OD x 5mm Thk

2шт.

10

5165372

DRIVEN GEAR,37T, 38T

Reverse

1шт.

11

87537028

SYNCHRONIZER,24T, 50mm OD, 38T, 80mm OD

1шт.

12

5164729

DRIVEN GEAR,37T, 38T

1шт.

13

5169086

ROLLER BEARING,47.5 mm ID x 100 mm OD x 27.25 mm

1шт.

14

5169091

NUT,Hex Flg, M47.50 x 1.5mm Pitch, 17mm High, LH

1шт.

Выбрано товаров: 14
