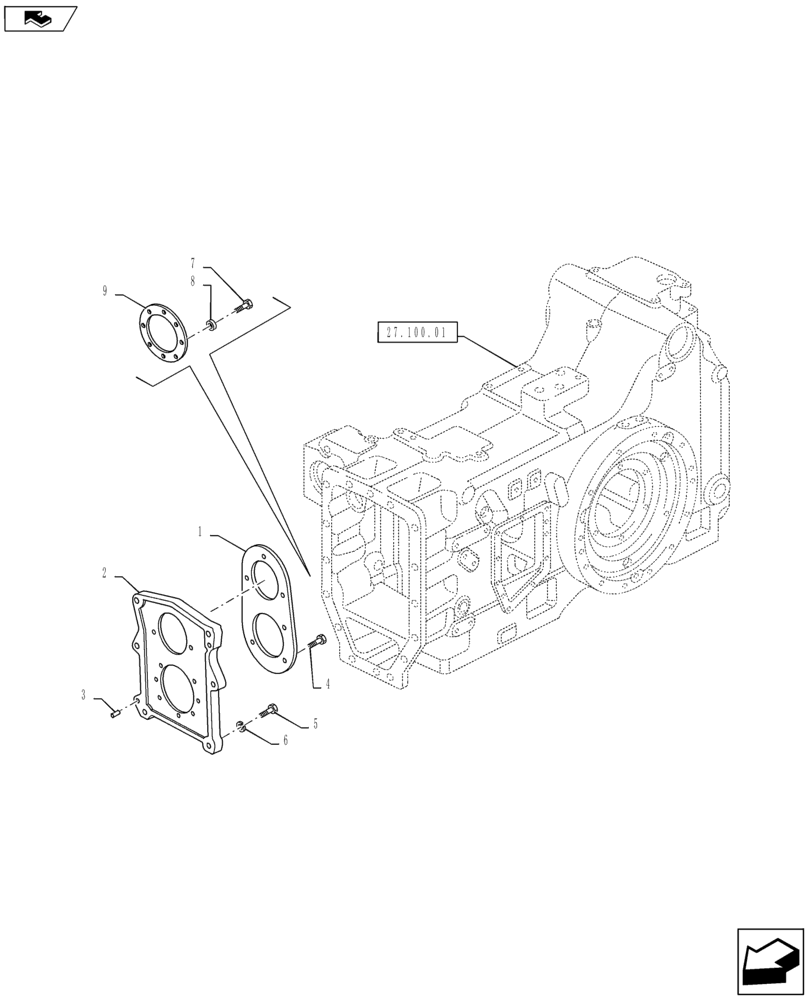

Запчасти Case IH PUMA 145 (27.100.04[02]) - FPS - REAR TRANSMISSION HOUSING - COVER (27) - REAR AXLE SYSTEM

1

5143257

PLATE

1шт.

2

5164785

SUPPORT

1шт.

3

10839710

DOWEL,M10 x 15.00mm

2шт.

4

14233424

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

with Creeper, VAR 335330, 743736

8шт.

5

11227024

BOLT,Hex, M14 x 1.5 x 65, 8.8

4шт.

5

11422030

BOLT,Hex, M14 x 1.5 x 55, 10.9

2шт.

6

11194174

BELLEVILLE WASHER,M14 Bolt Size x 27mm OD x 3mm Thk

6шт.

7

16204321

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8

with Creeper, VAR 335330, 743736

8шт.

8

11190570

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

with Creeper, VAR 335330, 743736

8шт.

9

5185547

PLATE

with Creeper, VAR 335330, 743736

1шт.
