(25.108.04) - VAR - 330427 - CL.3 FRONT AXLE W/ BRAKES - ARTICULATED AXLE SHAFT

Запчасти Case IH PUMA 145 (25.108.04) - VAR - 330427 - CL.3 FRONT AXLE W/ BRAKES - ARTICULATED AXLE SHAFT (25) - FRONT AXLE SYSTEM

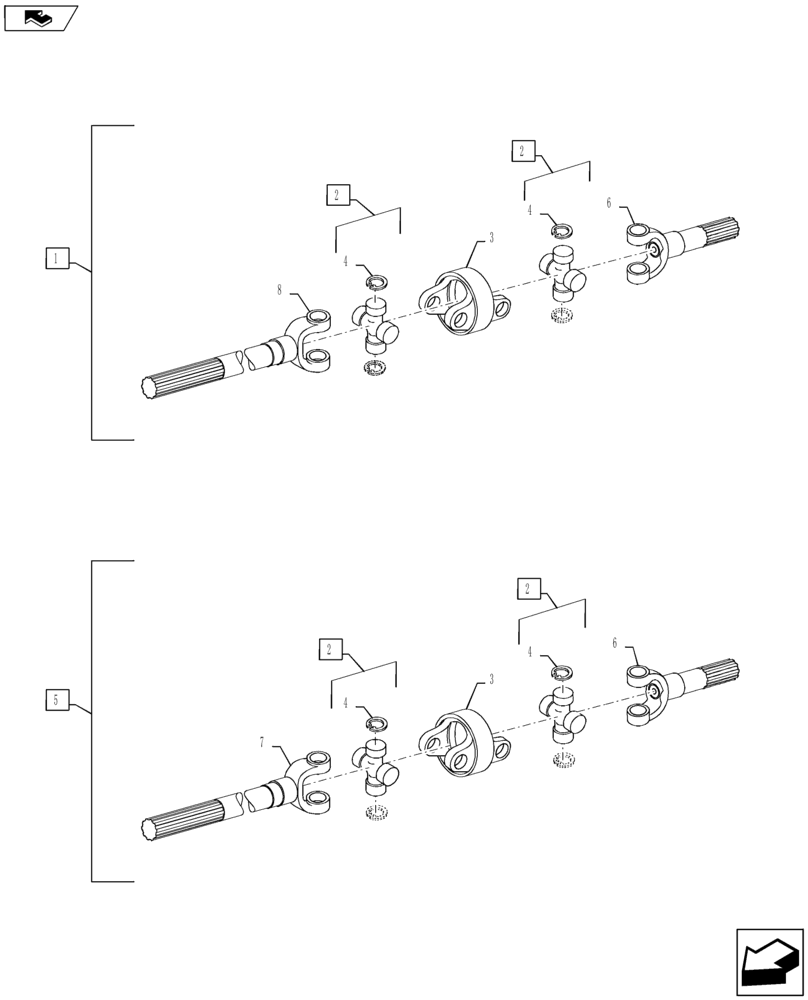

Схема запчастей Case IH PUMA 145 - (25.108.04) - VAR - 330427 - CL.3 FRONT AXLE W/ BRAKES - ARTICULATED AXLE SHAFT (25) - FRONT AXLE SYSTEM
2
4
4
2
6
home
2
4
3
4
2
8
3
6
5
7
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84194850

SHAFT

RH, Incl 2, 3, 6, 8

1шт.

2

5191547

U-JOINT SPIDER

Incl 4

2шт.

3

87361042

YOKE

Double

1шт.

4

5191548

CIRCLIP

8шт.

5

84194852

SHAFT

LH, Incl 2, 3, 6, 7

1шт.

6

84201726

SHORT SHAFT FORK,238.50mm

1шт.

7

5197765

LONG SHAFT FORK,733.00mm

1шт.

8

5197763

LONG SHAFT FORK,671.00mm

1шт.

Выбрано товаров: 8
