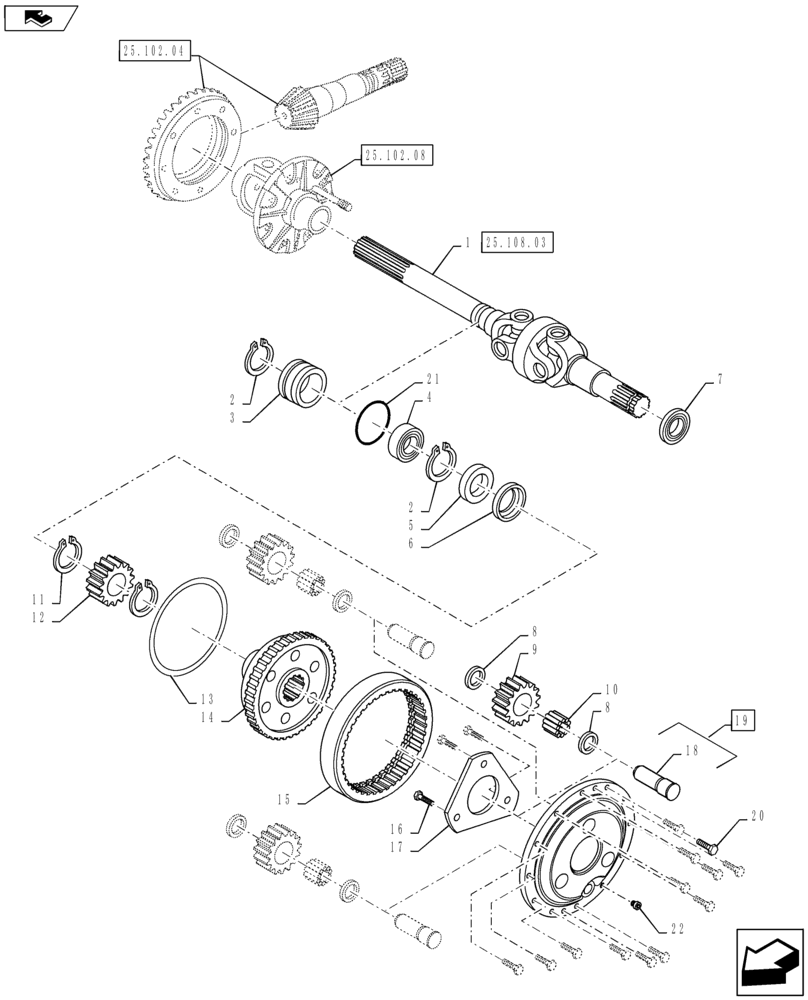

Запчасти Case IH PUMA 145 (25.108.01) - VAR - 330414, 390409 - CL.3 FRONT AXLE W/ OUT BRAKES - FINAL DRIVE (25) - FRONT AXLE SYSTEM

1

84194811

SHAFT

RH

1шт.

1

84194820

ARTICULATED SHAFT

LH

1шт.

2

11068876

SNAP RING,M40, Ext

2шт.

3

84197406

BUSHING

2шт.

4

28042480

BALL BEARING,40.00mm x 68.00mm x 15.00mm

2шт.

5

84166622

SEAL,43.1mm ID x 60mm OD x 17.2mm Thk

2шт.

6

5109311

SEAL PROTECTION,45.2mm ID x 68mm OD x 1mm Thk

2шт.

7

84166643

SEAL,45mm ID x 65mm OD x 27mm Thk

2шт.

8

5145499

THRUST WASHER,30mm ID x 50mm OD x 0.8mm Thk

12шт.

9

5145497

PLANETARY GEAR,25T

6шт.

10

5145492

ROLLER BEARING,30.3mm ID x 40.3mm OD x 29.8mm W

6шт.

11

5140018

SNAP RING,M30, Ext

4шт.

12

5145501

SUN GEAR,16T

2шт.

13

5151438

LOCKING RING,222mm ID, Int

2шт.

14

84224948

NOTCHED DISK

2шт.

15

5191770

RING GEAR

2шт.

16

14274424

LOCK BOLT,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

17

5152324

LOCKING RING,4mm Thk

2шт.

18

87304540

PIN,30.3mm OD x 68mm L

6шт.

19

87310820

CARRIER,Planetary

Incl 18

2шт.

20

14233734

BOLT,Hex, M10 x 1.25 x 35mm, Cl 10.9, Full Thd

24шт.

21

87421144

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

2шт.

22

14326211

PLUG,M22 x 1.50, R50, ZND

2шт.
