Запчасти Case IH PUMA 145 (25.102.17[02]) - VAR - 330408, 330429, 330430, 390408, 330426 - CL.4 FRONT AXLE - DIFFERENTIAL (25) - FRONT AXLE SYSTEM

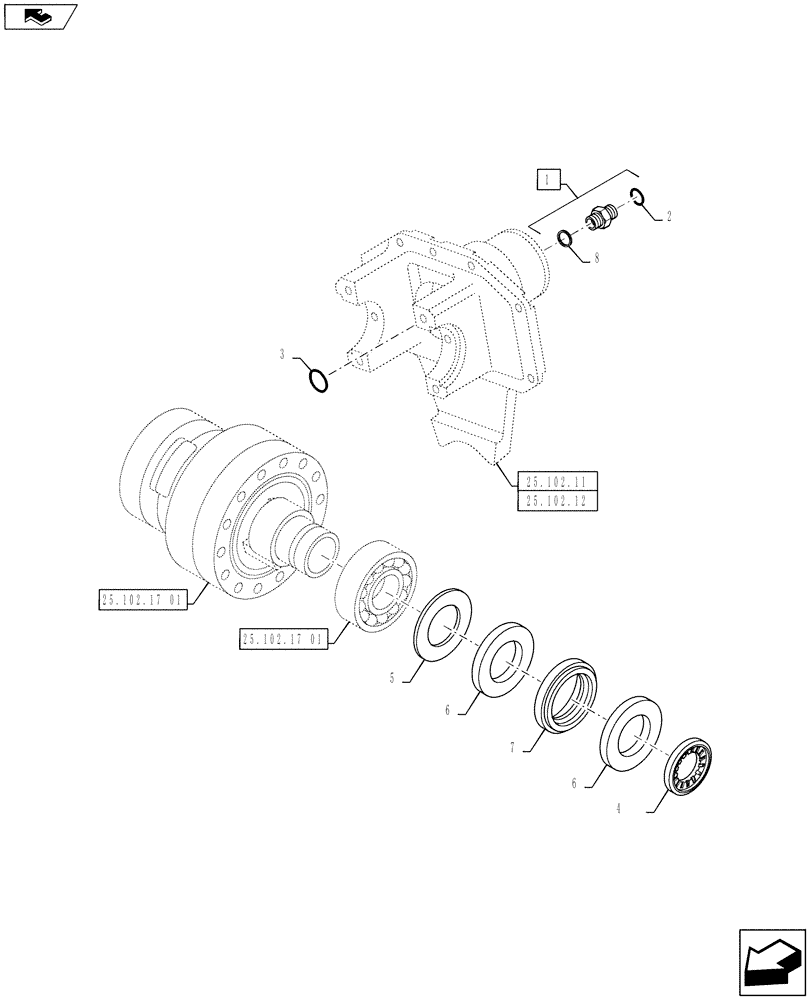

Схема запчастей Case IH PUMA 145 - (25.102.17[02]) - VAR - 330408, 330429, 330430, 390408, 330426 - CL.4 FRONT AXLE - DIFFERENTIAL (25) - FRONT AXLE SYSTEM
7
1
6
4
2
25.102.17 01
8
25.107.17 01
6
25.102.12
25.102.17 01
3
home
25.102.11
5

Артикул

Название

Примечание

Количество

1

82019693

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORFS

Incl 2, 8

1шт.

2

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

3

5192501

O-RING,0.139" Thk x 0.296" ID, -203, Cl 5, 75 Duro

1шт.

4

47129254

RING NUT

1шт.

5

47129259

SPACER,59.00mm ID x 94.50mm OD x 6.00mm

1шт.

6

47132472

SEAL,55.00mm x 72.00mm x 7/7.50mm

2шт.

7

47129260

HOUSING

Seal

1шт.

8

82019811

SEAL,11.6mm ID x 16.5mm OD x 1.5mm Thk

1шт.

Выбрано товаров: 8
