Запчасти Case IH PUMA 145 (25.102.17[01]) - VAR - 330408, 330429, 330430, 390408, 330426 - CL.4 FRONT AXLE - DIFFERENTIAL (25) - FRONT AXLE SYSTEM

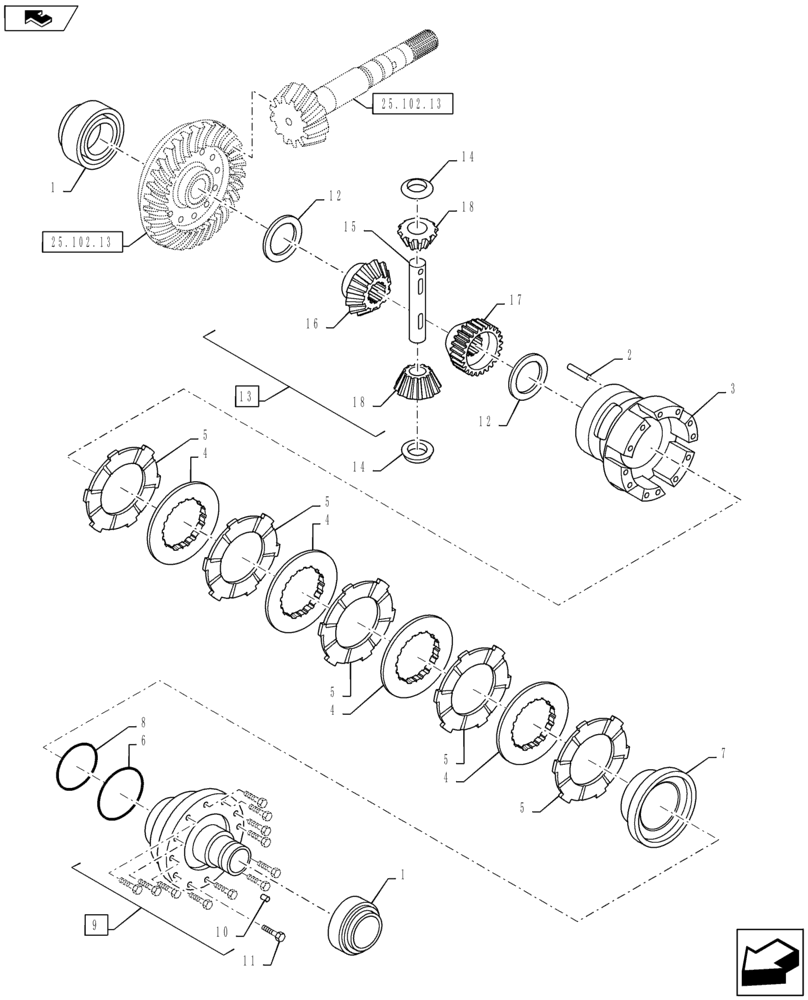

Схема запчастей Case IH PUMA 145 - (25.102.17[01]) - VAR - 330408, 330429, 330430, 390408, 330426 - CL.4 FRONT AXLE - DIFFERENTIAL (25) - FRONT AXLE SYSTEM
3
5
9
5
8
15
18
5
13
4
6
14
10
18
11
home
25.102.13
7
4
4
1
1
5
25.102.13
2
14
4
16
5
12
17
12

Артикул

Название

Примечание

Количество

1

87568699

TAPERED BEARING,60mm ID x 95mm OD x 23mm W

2шт.

2

87357828

PIN

1шт.

3

87331244

HOUSING

1шт.

4

5193452

DISC

5шт.

5

5192489

DISC

6шт.

6

14467281

O-RING,0.139" Thk x 5.484" ID, -254, Cl 7, 75 Duro

1шт.

7

5192492

PISTON

1шт.

8

14465181

O-RING,2.859" ID x 3.127" OD x 0.139"

1шт.

9

87331240

HALF-FLANGE

Incl 10

1шт.

10

5198864

PLUG

1шт.

11

84394072

BOLT,M10 x 1.25 x 30mm

12шт.

12

5192568

SHIM,45.00mm ID x 66.00mm OD x 2.60mm

1шт.

12

5192569

SHIM,45.00mm ID x 66.00mm OD x 2.70mm

1шт.

12

5192570

SHIM,45.00mm ID x 66.00mm OD x 2.80mm

1шт.

12

5192571

SHIM,45.00mm ID x 66.00mm OD x 2.90mm

1шт.

12

5192475

SHIM,45.00mm ID x 66.00mm OD x 3.00mm

1шт.

12

5192572

SHIM,45.00mm ID x 66.00mm OD x 3.10mm

1шт.

12

5192573

SHIM,45.00mm ID x 66.00mm OD x 3.20mm

1шт.

12

5192574

SHIM,45.00mm ID x 66.00mm OD x 3.30mm

1шт.

12

5192575

SHIM,45.00mm ID x 66.00mm OD x 3.40mm

1шт.

13

47129159

GEAR SET

Incl 16 - 18

1шт.

14

4987975

THRUST WASHER,24mm ID x 48mm OD

2шт.

15

87329332

AXLE DIFFERENTIAL

1шт.

16

NSS

NOT SOLD SEPARAT

RH Gear, Incl in 13

1шт.

17

NSS

NOT SOLD SEPARAT

LH Gear, Incl in 13

1шт.

18

NSS

NOT SOLD SEPARAT

Pinion, Incl in 13

2шт.

Выбрано товаров: 26
