Запчасти Case IH PUMA 145 (25.102.04) - VAR - 330414, 330427 - CL.3 SUSPENDED FRONT AXLE - RING & PINION (25) - FRONT AXLE SYSTEM

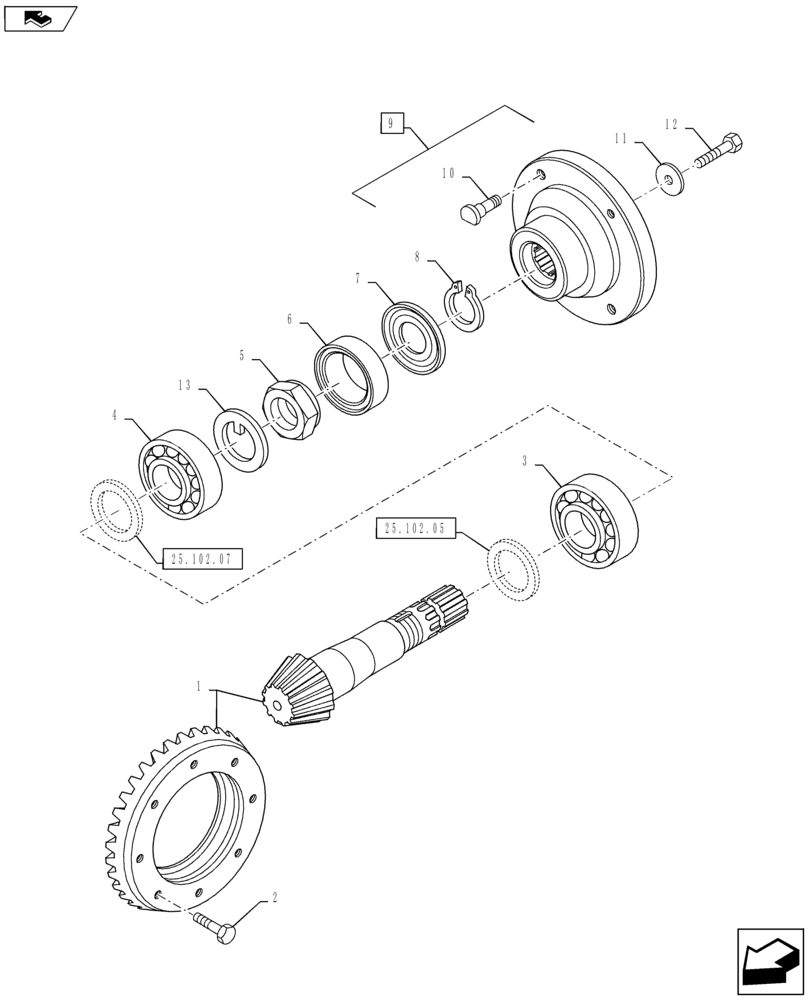

Схема запчастей Case IH PUMA 145 - (25.102.04) - VAR - 330414, 330427 - CL.3 SUSPENDED FRONT AXLE - RING & PINION (25) - FRONT AXLE SYSTEM
2
3
5
25.102.05
7
25.102.07
9
11
8
4
6
1
10
home
12
13

Артикул

Название

Примечание

Количество

1

87660362

BEVEL GEAR

Ratio 10/34

1шт.

1

84424877

BEVEL GEAR,10T/ 34T

Ratio 10/34

1шт.

2

14274434

LOCK BOLT,Hex, M12 x 1.25 x 25mm, Cl 10.9, Full Thd

8шт.

3

5143109

TAPERED BEARING,41.27mm x 82.55mm x 26.54mm

2шт.

4

5197256

SPACER

1шт.

5

5119147

RING NUT,M40 x 1.5

1шт.

5

84289762

NUT,M40,1.5mm Pitch

1шт.

6

87349657

SEAL,37mm ID x 85mm OD x 15.5mm Thk

1шт.

7

87528144

SEAL PROTECTION

1шт.

8

11068476

SNAP RING,M36, Ext

1шт.

9

87350786

FLANGE

Incl 10

1шт.

10

87550808

PIN,12.5mm OD x 37mm L

4шт.

11

87350787

WASHER

1шт.

12

15540431

SCREW,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

1шт.

13

84161677

E-RING

1шт.

Выбрано товаров: 15
