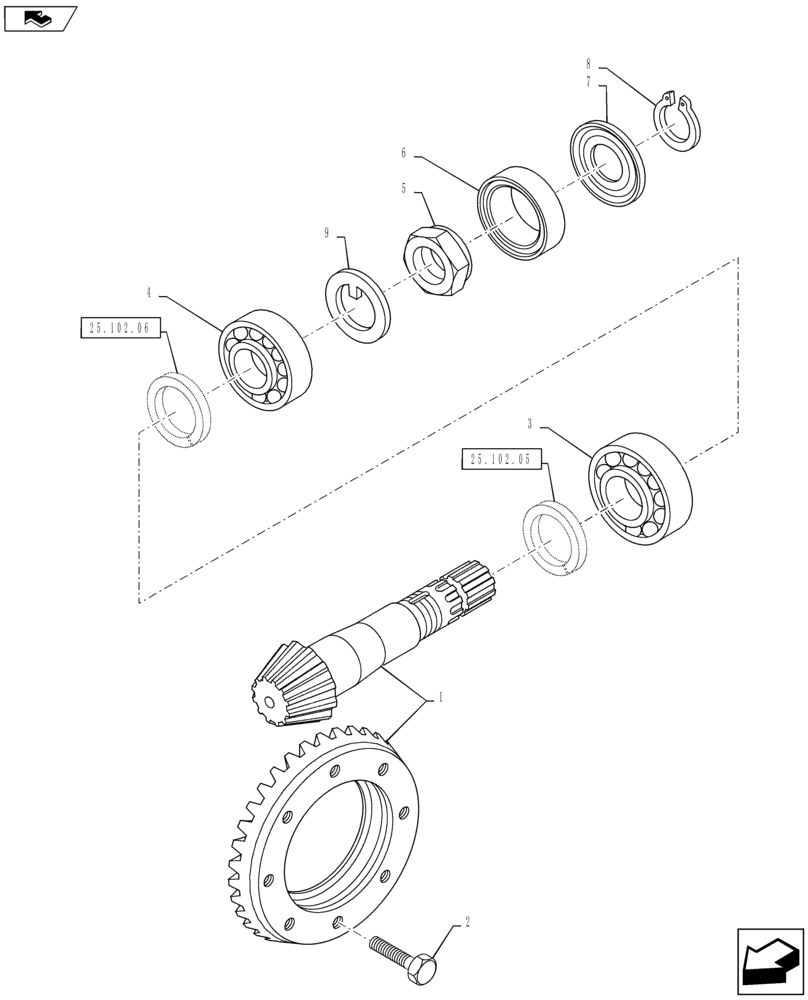

Запчасти Case IH PUMA 145 (25.102.03) - VAR - 390409 - CL.3 STANDARD FRONT AXLE - RING & PINION (25) - FRONT AXLE SYSTEM

1

87519336

BEVEL GEAR

Ratio 10/34

1шт.

1

84424849

BEVEL GEAR

Ratio 10/34

1шт.

2

14274434

LOCK BOLT,Hex, M12 x 1.25 x 25mm, Cl 10.9, Full Thd

8шт.

3

5143109

TAPERED BEARING,41.27mm x 82.55mm x 26.54mm

1шт.

4

5133776

TAPERED BEARING,35.00mm x 72.00mm x 28.00mm

1шт.

5

5143242

RING NUT,M35 x 1.5

1шт.

5

84289068

CROWN NUT,M35 x 1.5

1шт.

6

87349652

SEAL,32.5mm ID x 75mm OD x 15mm Thk

1шт.

7

87527839

SEAL PROTECTION

1шт.

8

370003

SNAP RING,M30, External

1шт.

9

84285936

SPECIAL WASHER

1шт.
