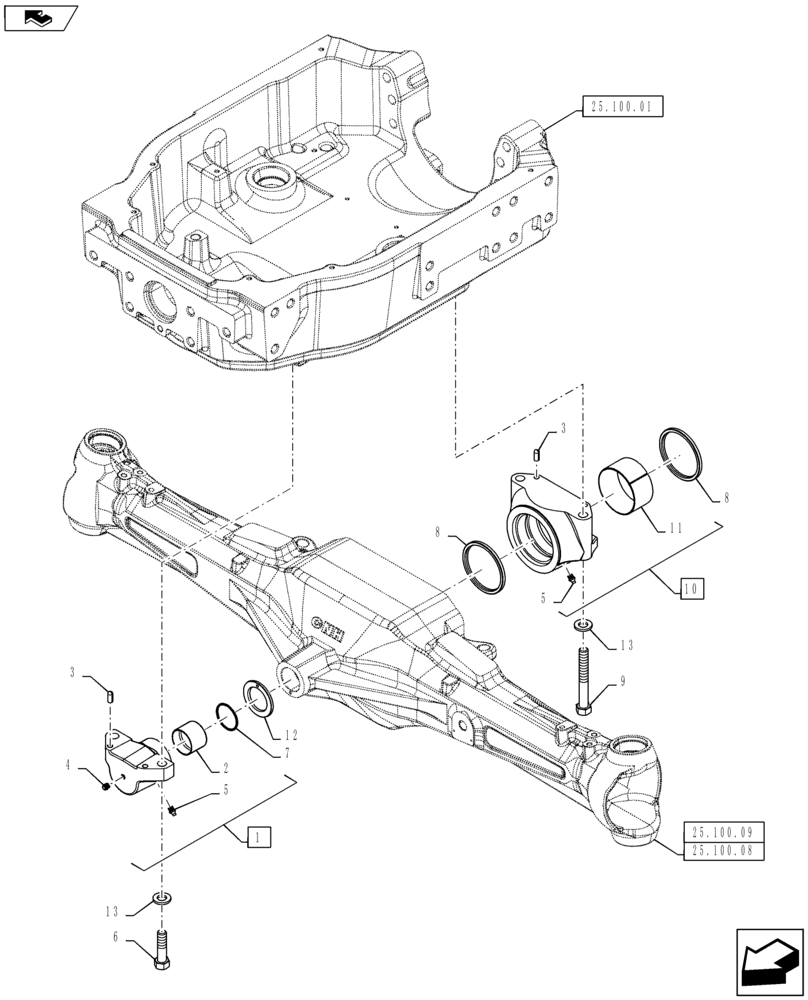

Запчасти Case IH PUMA 145 (25.100.06) - VAR - 330408, 390408, 390409 - AXLE MOUNTING - STANDARD 4WD FRONT AXLE (25) - FRONT AXLE SYSTEM

1

87311589

TRUNNION

Incl 2 - 5

1шт.

2

5101112

BUSHING,52.72mm ID x 57.16mm OD x 42mm L

1шт.

3

10837710

DOWEL,M10 x 25

4шт.

4

13411117

VALVE PRESSURE RELIE,M10, Black

1шт.

5

13407211

LUBE NIPPLE,M10 x 1

2шт.

6

15222234

BOLT,Hex, M18 x 70mm, Cl 10.9, Full Thd

2шт.

7

14471380

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

1шт.

8

5188609

SEALING RING,99.04mm ID x 115mm OD x 7.5mm Thk

Std Equipment for CL3 Front Axle with Hydraulic Diff Lock and Steering Sensor, Puma 130, 145 Models only.

2шт.

8

5188607

SEAL,115.5mm ID x 130mm OD x 7.5mm Thk

Std Equipment for CL4 Front Axle with Multi-Plate Diff Lock and Steering Sensor, Puma 160. With CL4 Front Axle with Multi-Plate Diff Lock and Steering Sensor, VAR 330408, Puma 130, 145

2шт.

9

15223534

BOLT,Hex, M18 x 140mm, Cl 10.9, Full Thd

2шт.

10

87515300

TRUNNION

Incl 3, 5, 11. Std Equipment for CL3 Front Axle with Hydraulic Diff Lock and Steering Sensor, Puma 130, 145 Models only

1шт.

10

87311603

TRUNNION

Incl 3, 5, 11. Std Equipment for CL4 Front Axle with Multi-Plate Diff Lock and Steering Sensor, Puma 160 only. With CL4 Front Axle with Multi-Plates Diff Lock and Steering Sensor, VAR 330408, Puma 130, 145

1шт.

11

5129385

BUSHING,99.15mm ID x 103.7mm OD x 52mm L

Std Equipment for CL3 Front Axle with Hydraulic Diff Lock and Steering Sensor, Puma 130, 145 Models only

1шт.

11

5140589

BUSHING,115.64mm ID x 120.19mm OD x 52mm L

Std Equipment for CL4 Front Axle with Multi-Plate Diff Lock and Steering Sensor, Puma 160 Model. With CL4 Front Axle with Multi-Plate Diff Lock and Steering Sensor, VAR 330408, Puma 130, 145

1шт.

12

5140456

RING,52.8mm ID x 80mm OD x 5mm Thk

1шт.

13

11191674

BELLEVILLE WASHER,M18 Bolt Size x 36mm OD x 4.2mm Thk

4шт.
