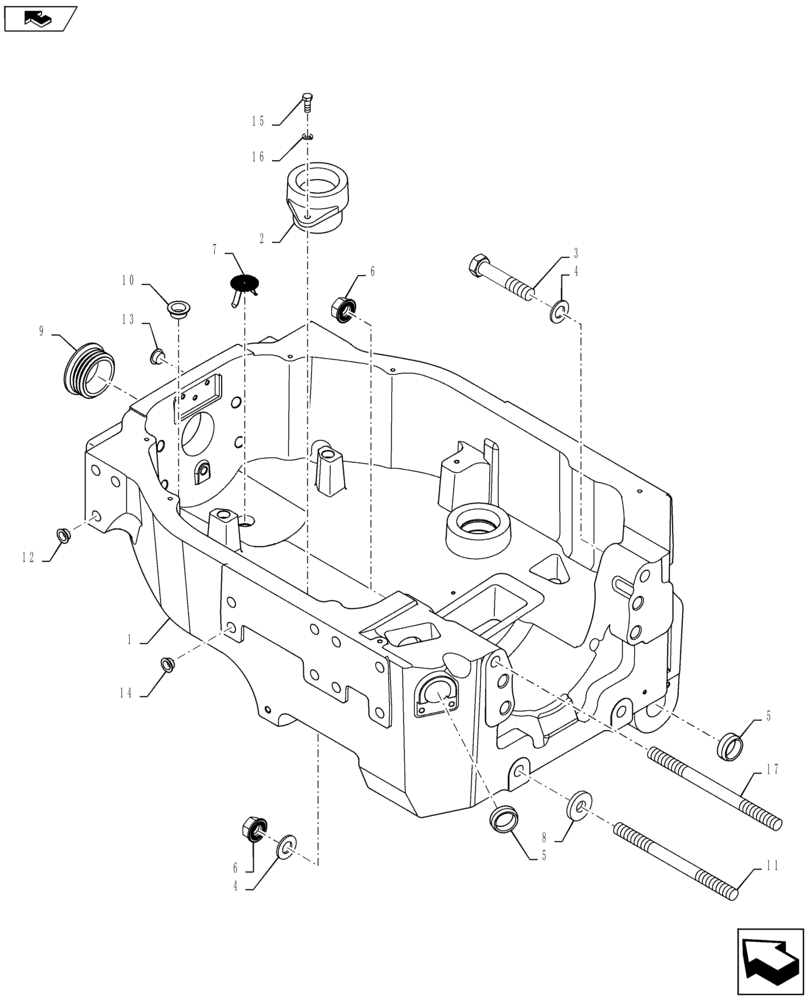

Запчасти Case IH PUMA 145 (25.100.02) - VAR - 330414, 330427, 330429, 330430, 309016, 336811 - AXLE SUPPORT - SUSPENDED 4WD FRONT AXLE (25) - FRONT AXLE SYSTEM

1

84380305

SUPPORT

Suspended Front Axle

1шт.

2

82030470

SUPPORT

1шт.

3

82029234

BOLT,Hex, M20 x 1.5 x 125mm, Cl 12.9

3шт.

4

82028022

WASHER,M8 x 1.25 ID x 40mm OD x 9mm Thk, CRLC or HRLC Steel

3шт.

5

82018767

SPACER,34mm ID x 44mm OD x 15.5mm L

2шт.

6

82023393

LOCK NUT

5шт.

7

82021866

GRILLE

1шт.

8

82026240

SHIM,20.2mm ID x 50mm OD x 4.5mm Thk

1шт.

8

82026241

SHIM,20.2mm ID x 50mm OD x 4.8mm Thk

1шт.

8

82026242

SHIM,20.2mm ID x 50mm OD x 5.1mm Thk

1шт.

8

82026243

SHIM,20.2mm ID x 50mm OD x 5.4mm Thk

1шт.

8

82026244

SHIM,20.2mm ID x 50mm OD x 5.7mm Thk

1шт.

8

82026245

SHIM,20.2mm ID x 50mm OD x 6mm Thk

1шт.

8

82026246

SHIM,20.2mm ID x 50mm OD x 6.3mm Thk

1шт.

8

82026247

SHIM,20.2mm ID x 50mm OD x 6.6mm Thk

1шт.

8

82026248

SHIM,20.2mm ID x 50mm OD x 6.9mm Thk

1шт.

8

82026249

SHIM,20.2mm ID x 50mm OD x 4.5mm Thk

1шт.

8

82026250

SHIM,20mm ID x 50mm OD x 7.5mm Thk

1шт.

8

82026251

SHIM,20.2mm ID x 50mm OD x 7.8mm Thk

1шт.

9

82027992

PLUG,80.00mm, 90.00mm OD, 32.00mm D

1шт.

10

87305541

PLASTIC PLUG,26.00mm, 36.00mm OD, 16.00mm D

1шт.

11

87333613

STUD,M20 x 1.5 x 240mm L

2шт.

12

82035752

PLASTIC PLUG,7.00mm, 11.00mm OD, 5.5mm D

4шт.

12

82037171

PLASTIC PLUG,22.00mm, 32.00mm OD

8шт.

13

85700614

DUST CAP,0.532", 0.750" OD, 0.437" D

4шт.

14

85700666

PLASTIC PLUG,17.14mm, 22.22mm OD, 12.70mm D

16шт.

15

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

16

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

2шт.

17

87333612

STUD,M20 x 1.5 x 295mm, Cl 12.9

3шт.
