Запчасти Case IH PUMA 145 (21.155.08) - VAR - 330285 - FPS - "C" AND "D" CLUTCHES (21) - TRANSMISSION

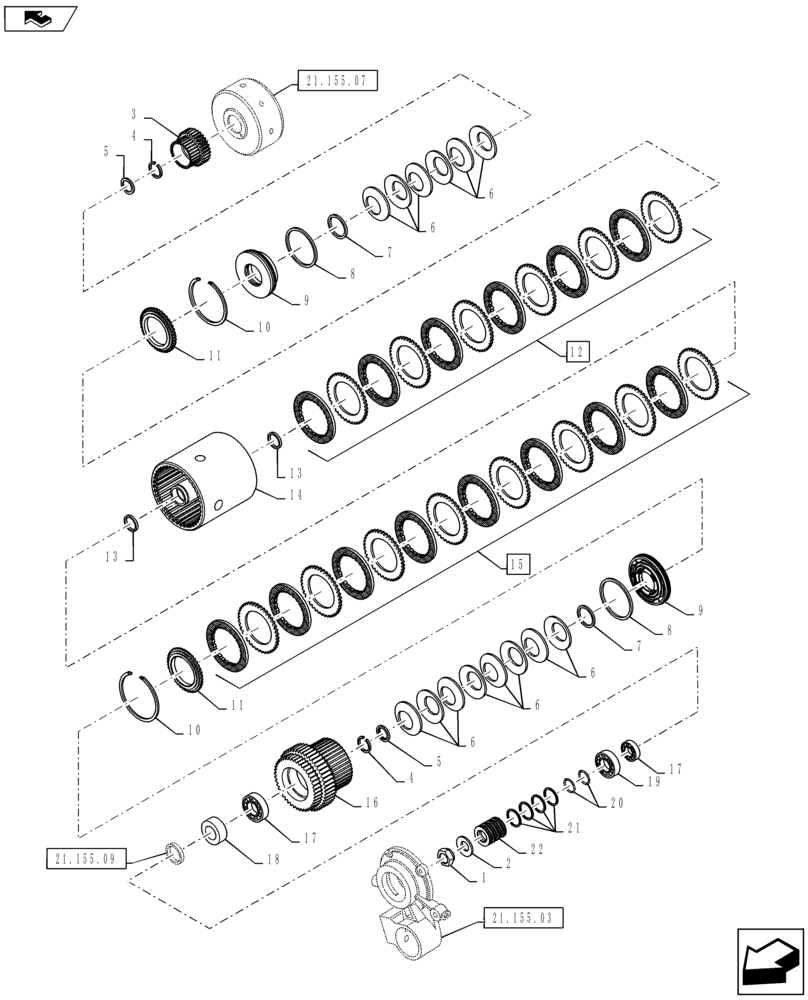

Схема запчастей Case IH PUMA 145 - (21.155.08) - VAR - 330285 - FPS - "C" AND "D" CLUTCHES (21) - TRANSMISSION
6
21.155.07
9
10
20
1
21.155.09
9
4
16
15
3
18
10
12
8
6
17
13
7
7
6
4
13
5
19
11
5
6
home
14
2
17
8
6
22
11
21.155.03
21

Артикул

Название

Примечание

Количество

1

5147930

RING NUT,M45 x 1.5

1шт.

2

5166037

SPRING,Belleville, 45.25mm OD x 4.5mm Thk

1шт.

3

5167830

DRIVEN GEAR,45T, 52T

III-IV SPEED

1шт.

4

5175981

CIRCLIP,1.5mm Thk

2шт.

5

5164928

RETAINER CUP,60mm ID x 70mm OD x 3mm Thk

2шт.

6

87547947

SPRING,Belleville, 60mm ID x 1.9mm Thk

14шт.

7

87547826

RING,61mm ID x 84.95mm OD x 3mm Thk

2шт.

8

5138955

GASKET,134.55mm ID x 142.06mm OD x 3.2mm Thk

3шт.

9

87547824

PISTON

2шт.

10

47132782

SNAP RING,3mm Thk, Int

2шт.

11

47132780

THRUST PLATE,60T, 154.75mm OD

2шт.

12

87530788

CLUTCH PACK

1шт.

13

5162252

GASKET,68mm ID x 75.5mm OD x 3.2mm Thk

2шт.

14

47132827

CLUTCH HOUSING

1шт.

15

87530789

CLUTCH PACK

1шт.

16

5167826

DRIVEN GEAR,50T, 52T, 52T

I-II SPEED

1шт.

17

24903820

TAPERED BEARING,45 mm ID x 75 mm OD x 20 mm

2шт.

18

5167099

SPACER,45.1mm ID x 56mm OD x 24.5mm L

1шт.

19

5150900

BEARING, ROLLER, CYL,45mm ID x 85mm OD x 19mm W

1шт.

20

14454781

O-RING,0.07" Thk x 1.614" ID, -30, Cl 7, 75 Duro

2шт.

21

83911795

SEAL,Split, 70.76mm ID x 76.2mm OD x 2.13mm Thk

4шт.

22

5187957

MANIFOLD

1шт.

Выбрано товаров: 22
