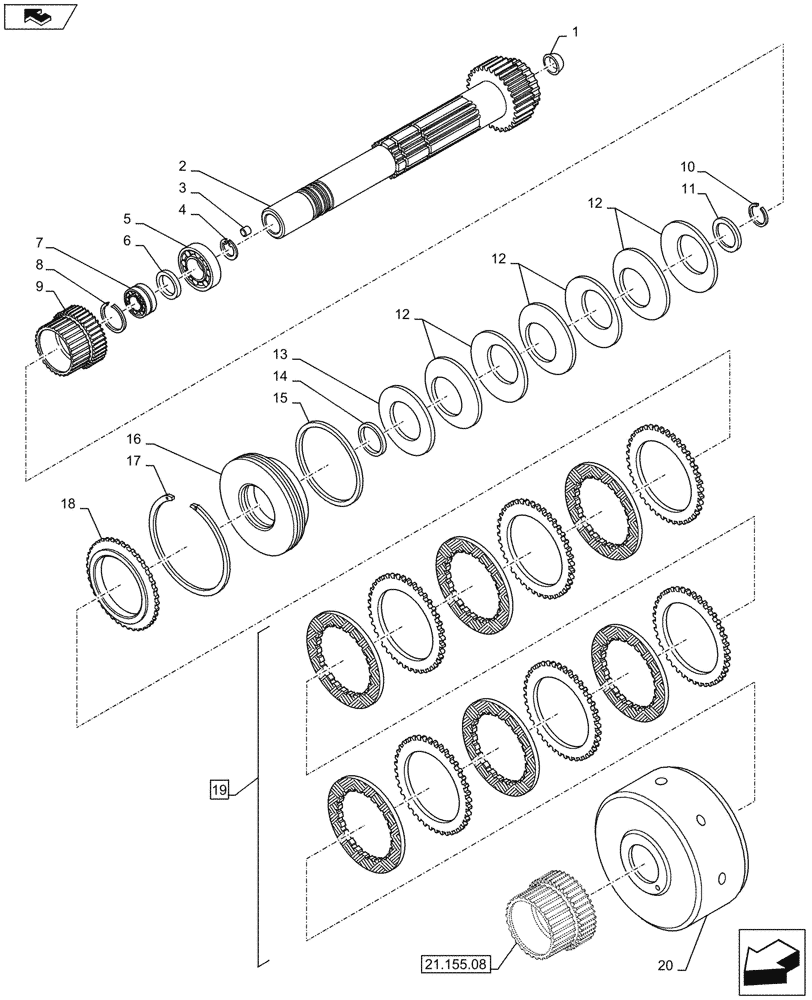

Запчасти Case IH PUMA 145 (21.155.07) - VAR - 330285 - FPS - DRIVEN SHAFT AND E CLUTCH (21) - TRANSMISSION

1

5179204

PLUG,20.27mm OD x 6.38mm W

1шт.

2

5179214

SHAFT,28T, 4T, 44T, 469.5mm L

1шт.

3

5162260

PLUG,Round, 10.5mm OD

3шт.

4

11059076

SNAP RING,M32, Int

1шт.

5

5138418

TAPERED BEARING,50mm ID x 110mm OD x 29.25mm W

1шт.

6

5162261

SPACER,50.1mm ID x 60mm OD x 4mm L

1шт.

7

5162622

BALL BEARING,50mm ID x 80mm OD x 32mm W

2шт.

8

5162623

CIRCLIP,80mm ID

2шт.

9

47126212

GEAR,39T, 52T

V-VI SPEED

1шт.

10

5175981

CIRCLIP,1.5mm Thk

1шт.

11

5164928

RETAINER CUP,60mm ID x 70mm OD x 3mm Thk

1шт.

12

87547947

SPRING,Belleville, 60mm ID x 1.9mm Thk

6шт.

13

87547826

RING,61mm ID x 84.95mm OD x 3mm Thk

1шт.

14

5162252

GASKET,68mm ID x 75.5mm OD x 3.2mm Thk

1шт.

15

5138955

GASKET,134.55mm ID x 142.06mm OD x 3.2mm Thk

1шт.

16

87547824

PISTON

1шт.

17

47132782

SNAP RING,3mm Thk, Int

1шт.

18

47132780

THRUST PLATE,60T, 154.75mm OD

1шт.

19

87530788

CLUTCH PACK

1шт.

20

47132786

CLUTCH HOUSING

1шт.
