Запчасти Case IH PUMA 145 (21.152.03) - VAR - 743735, 331247, 743734, 331291, 393247 - SPS - MANIFOLD & COVER - CLUTCH ENGAGEMENT (21) - TRANSMISSION

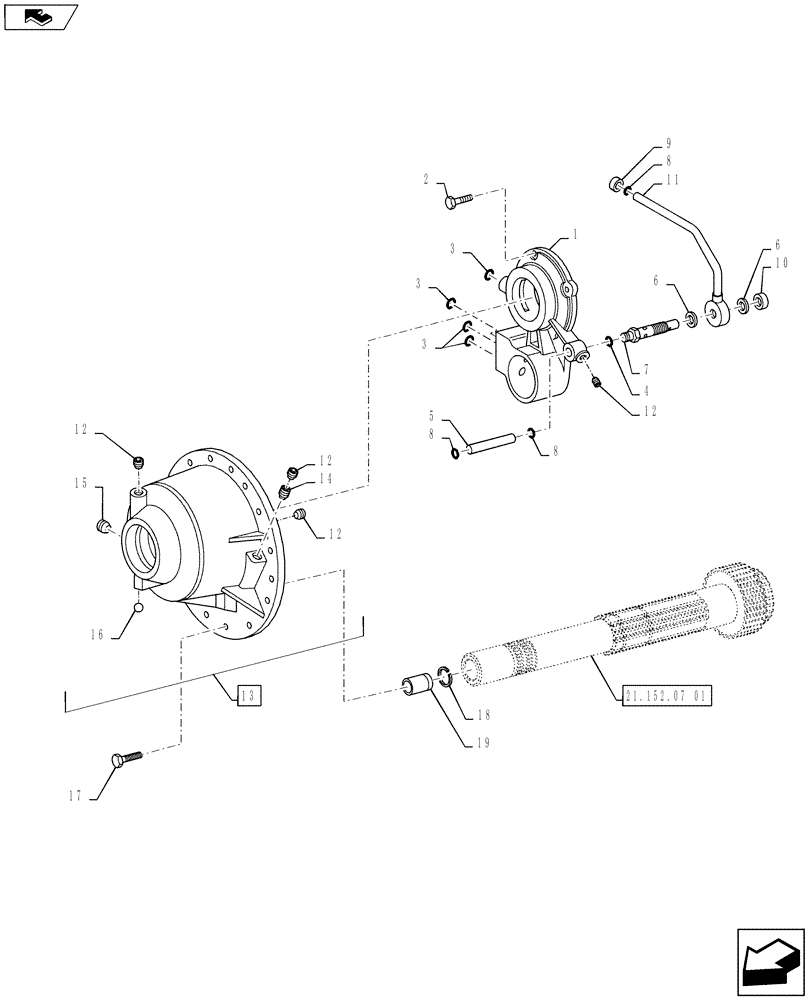

Схема запчастей Case IH PUMA 145 - (21.152.03) - VAR - 743735, 331247, 743734, 331291, 393247 - SPS - MANIFOLD & COVER - CLUTCH ENGAGEMENT (21) - TRANSMISSION
8
3
2
8
9
4
18
10
13
8
1
11
3
12
5
7
17
16
3
home
19
12
6
14
12
6
12
21.152.07 01
15

Артикул

Название

Примечание

Количество

1

5187970

SUPPORT

1шт.

2

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

3

86637641

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

4шт.

4

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

1шт.

5

5178212

TUBE,97mm L

1шт.

6

10261860

COPPER WASHER,22.3mm ID x 30mm OD x 1.5mm Thk

2шт.

7

5185573

VALVE PRESSURE RELIE

1шт.

8

14457281

O-RING,0.612" ID x 0.103" Width

3шт.

9

5167066

BUSHING,16.2mm ID x 20mm OD x 11mm L

1шт.

10

5164984

SPACER,22.3mm ID x 30mm OD x 7.5mm L

1шт.

11

5164980

TUBE

1шт.

12

10275501

PLUG,Pipe, Hex Skt, M12 x 1.25 x 11mm, Cl 4.8

4шт.

13

5164862

COVER

Incl 12, 14 - 16

1шт.

14

5167313

PLUG,Hex Skt, M12 x 12mm

1шт.

15

14326001

PLUG,Hex Skt, M10 x 1.25 x 11mm, Cl 4.8

1шт.

16

20063460

BALL,7.14mm OD, Gr 100

1шт.

17

16043924

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

10шт.

18

5185502

PISTON RING,28.5mm ID x 32mm OD x 2.1mm Thk

1шт.

19

5186000

TUBE

1шт.

Выбрано товаров: 19
