(21.133.01) - VAR - 390283 - SPS TRANSMISSION - REDUCTION UNIT VALVE BLOCK - SUPPORT AND ACCUMULATOR

Запчасти Case IH PUMA 145 (21.133.01) - VAR - 390283 - SPS TRANSMISSION - REDUCTION UNIT VALVE BLOCK - SUPPORT AND ACCUMULATOR (21) - TRANSMISSION

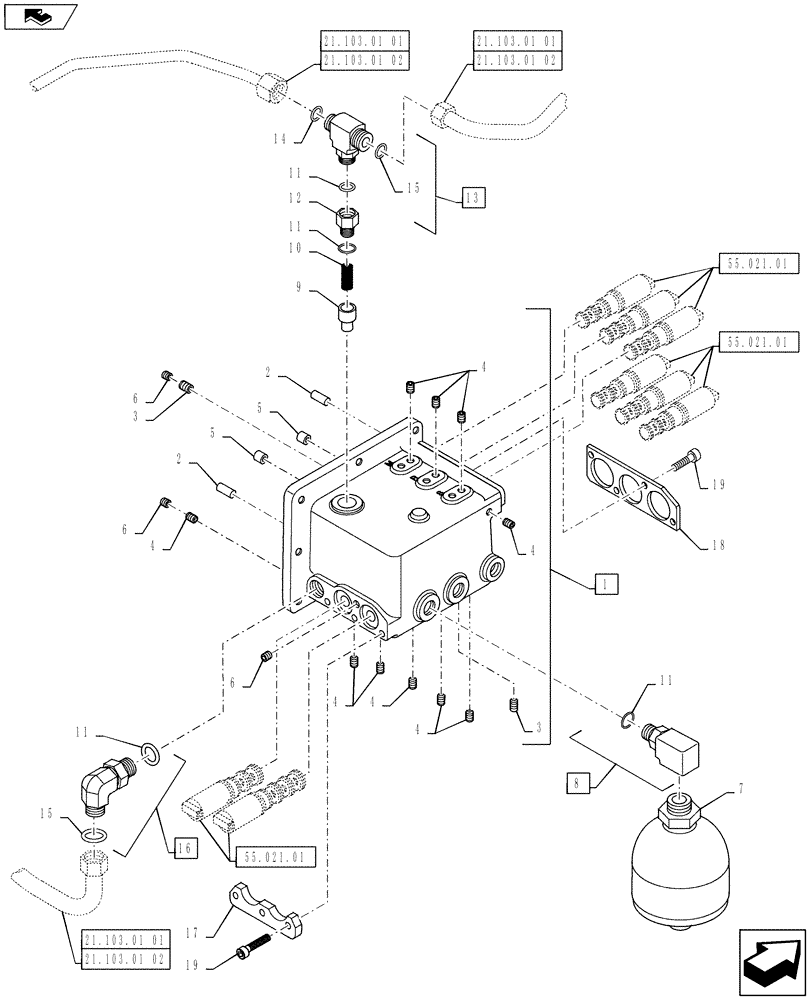

Схема запчастей Case IH PUMA 145 - (21.133.01) - VAR - 390283 - SPS TRANSMISSION - REDUCTION UNIT VALVE BLOCK - SUPPORT AND ACCUMULATOR (21) - TRANSMISSION
4
9
3
55.021.01
2
4
12
4
55.021.01
11
15
21.103.01 01
6
19
13
4
3
21.103.01 01
2
11
6
4
55.021.01
19
15
14
21.103.01 02
5
5
11
7
6
18
11
21.103.01 02
4
8
10
16
home
1
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87381541

VALVE BODY

Incl 2 - 6

1шт.

2

10839710

DOWEL,M10 x 15.00mm

2шт.

3

87323514

SLEEVE VALVE

2шт.

4

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

10шт.

5

5120207

BUSHING,10.5mm ID x 12.7mm OD x 19mm L

2шт.

6

10269404

PLUG,M12 x 1.5

2шт.

7

87314179

ACCUMULATOR,0.75L

1шт.

8

87520335

HYD CONNECTOR,M22 x 1.5 x M22 x .5

Incl 11

1шт.

9

5169565

VALVE,By-Pass

1шт.

10

5159185

SPRING,Compression, 12.5mm OD x 32.5mm L

1шт.

11

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

12

5195483

HYD CONNECTOR,M22 x 1.5 ORFS - M22 x 1.5 ORB

1шт.

13

87325405

HYD CONNECTOR,1"-14 ORFS x 13/16-16 ORFS x M22 x 1.5 ORB

Incl 13, 14

1шт.

14

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

15

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

16

5192286

90 ELBOW,1-14" ORFS x M22 x 1.5

1шт.

17

87386213

FIXING PLATE

1шт.

18

84277154

MOUNTING PARTS

2шт.

19

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

11шт.
