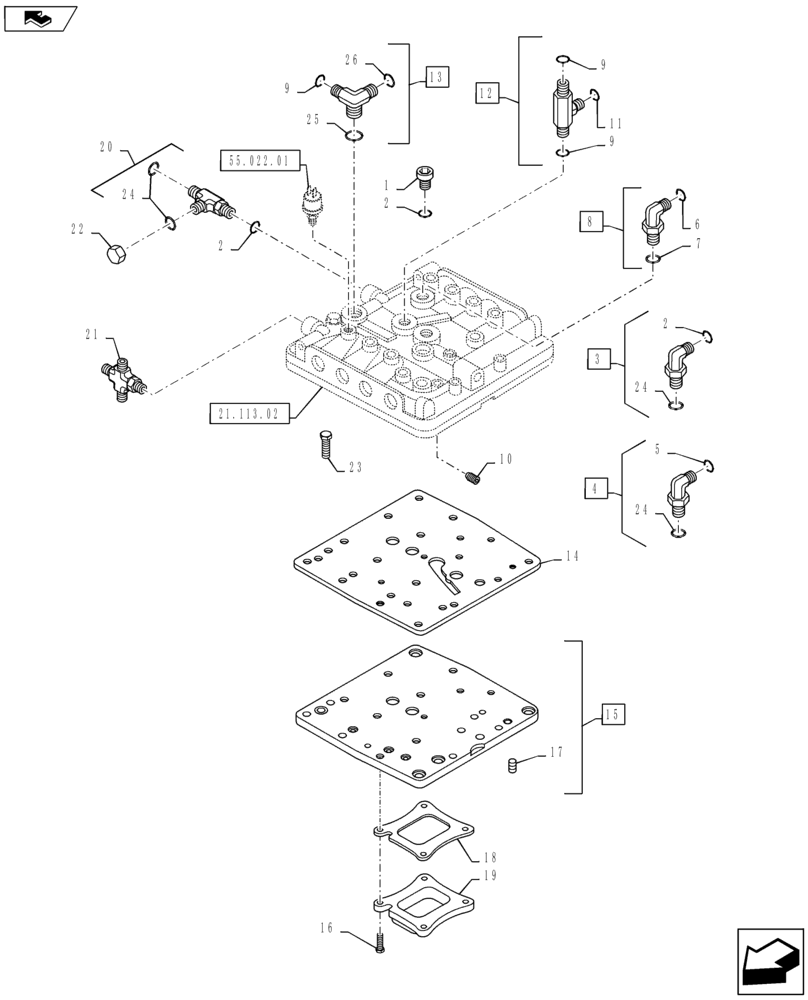

Запчасти Case IH PUMA 145 (21.113.03) - VAR - 330285 - FPS TRANSMISSION TOP COVER (21) - TRANSMISSION

1

10119311

PLUG,M16 x 1.5 x 12, Cl5.8

1шт.

2

14437885

O-RING,13.30mm ID x 2.40mm

2шт.

3

5194076

ELBOW,90 Deg, 11/16-16 ORFS x M16 x 1.5 ORB

Incl 2, 24

1шт.

4

5188442

HYD CONNECTOR,11/16-16 ORFS x M14 x 1.5 ORB

Incl 5, 24

1шт.

5

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

6

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

7

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

8

5185052

90 ELBOW,13/16"-16 x M18 x 1.5

Incl 6, 7

1шт.

9

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

10

14324011

PLUG,Taper Pipe, Sq Hd, M10 x 1 x 14mm, Cl 5.8

1шт.

11

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

12

5187064

TEE

Incl 9, 11

1шт.

13

87519151

HYD CONNECTOR,1"3/16-12 x M27 x 2 x 1"14

Incl 9, 25, 26

1шт.

14

87318885

GASKET,0.7-0.9mm Thk

1шт.

15

87318876

PLATE

Incl 17

1шт.

16

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

5шт.

17

5153109

DOWEL,10mm OD x 15mm L

2шт.

18

87318886

GASKET,0.5mm Thk

1шт.

19

87318878

COVER

1шт.

20

87336785

HYD CONNECTOR,11/16"-16 ORFS x 11/16"-16 ORFS x M16 x 1.5 ORB

Incl 2, 24

1шт.

21

87519159

HYD CONNECTOR,1"-14 x M22 x 1.5 x 1"-14

1шт.

22

47136652

PLUG,11/16"-16 ORFS

1шт.

23

14306730

SCREW,M8 x 40mm, Cl 10.9

1шт.

24

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

2шт.

25

14438185

O-RING,24mm ID x 3mm

1шт.

26

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.
