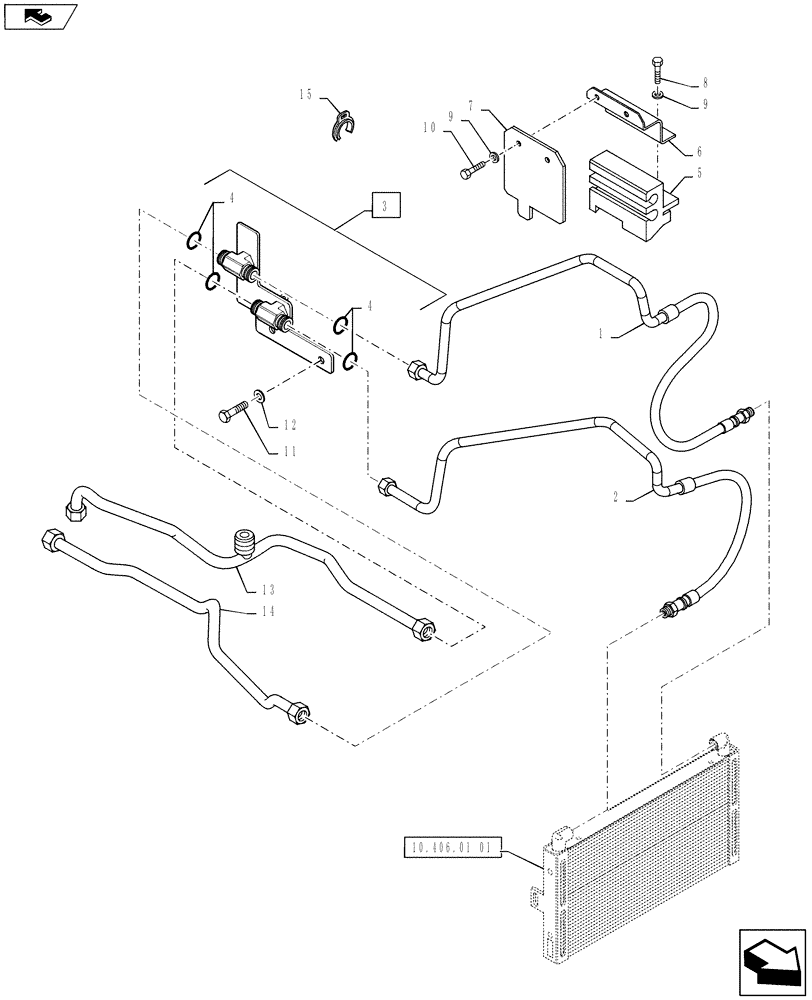

Запчасти Case IH PUMA 145 (21.109.03) - VAR - 330285 - FPS - TRANSMISSION OIL COOLER - PIPES (21) - TRANSMISSION

1

84162839

HYD TUBE,16 mm ID x 18 mm OD

1шт.

2

84162842

HYD TUBE,18 mm OD

1шт.

3

84136405

HOLDER

Incl 4

1шт.

4

81825117

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

5

84156111

SUPPORT

1шт.

6

84156500

PLATE

1шт.

7

84153304

COVER

1шт.

8

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

2шт.

9

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

4шт.

10

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

2шт.

11

11112421

SCREW,Hex, M12 x 30mm, Cl 8.8

3шт.

12

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

3шт.

13

84497514

HYD TUBE

, Serial Range: -C9029

1шт.

13

87583750

HYD TUBE,17 mm ID x 20 mm OD x 854, 384 mm L

, Start Serial: D9029

1шт.

14

87658923

HYD TUBE

1шт.

15

87363477

CLIP

2шт.
