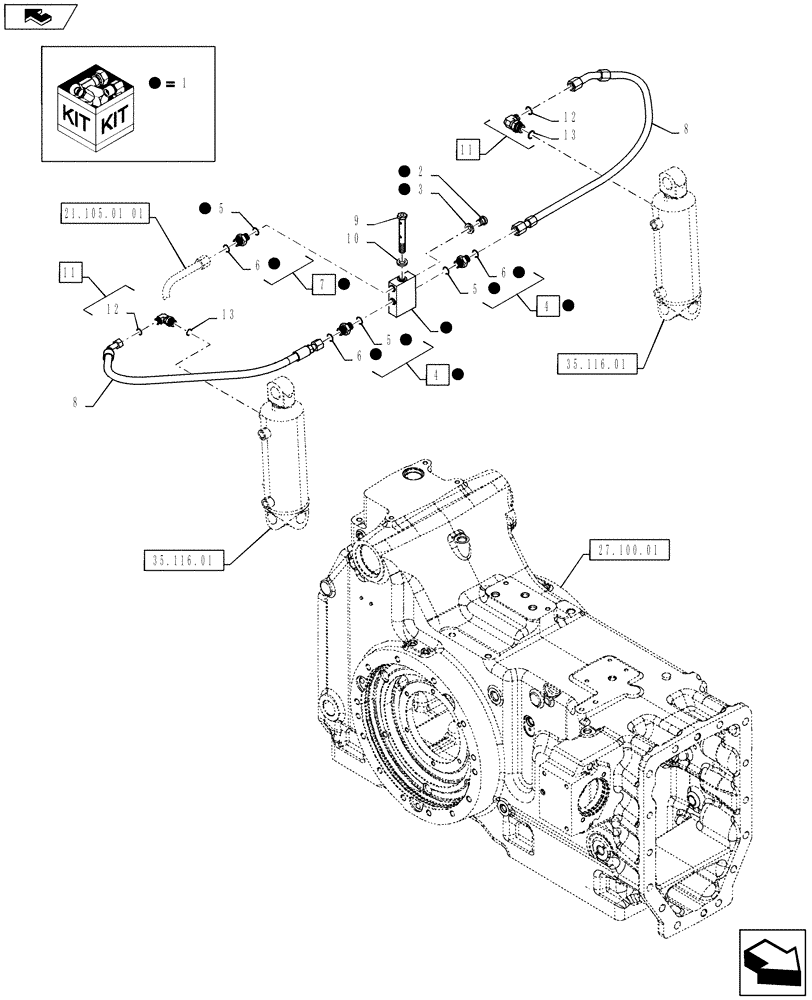

Запчасти Case IH PUMA 145 (21.105.02) - LIFT CYLINDER LUBRICATION PIPES AND REAR LUBRICATION BLOCK (21) - TRANSMISSION

1

87570548

BLOCK

Incl 2 - 7

1шт.

2

10119311

PLUG,M16 x 1.5 x 12, Cl5.8

1шт.

3

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

4

86579675

HYD CONNECTOR,13/16"-16 ORFS x M16 x 1.5 ORB

Incl 5, 6

2шт.

5

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

6

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

7

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

Incl 5, 6

1шт.

8

87519175

HOSE,9.5mm ID x 800mm L, SAE 100R16

Cylinder Lubrication

2шт.

9

87519177

BANJO BOLT,M16 x 1 x 115mm

1шт.

10

5167639

SEALING WASHER,13.4mm ID x 24mm OD x 1.5mm Thk

1шт.

11

5185052

90 ELBOW,13/16"-16 x M18 x 1.5

Incl 12, 13

2шт.

12

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

13

14437985

O-RING,15.3mm ID x 2.4mm

1шт.
