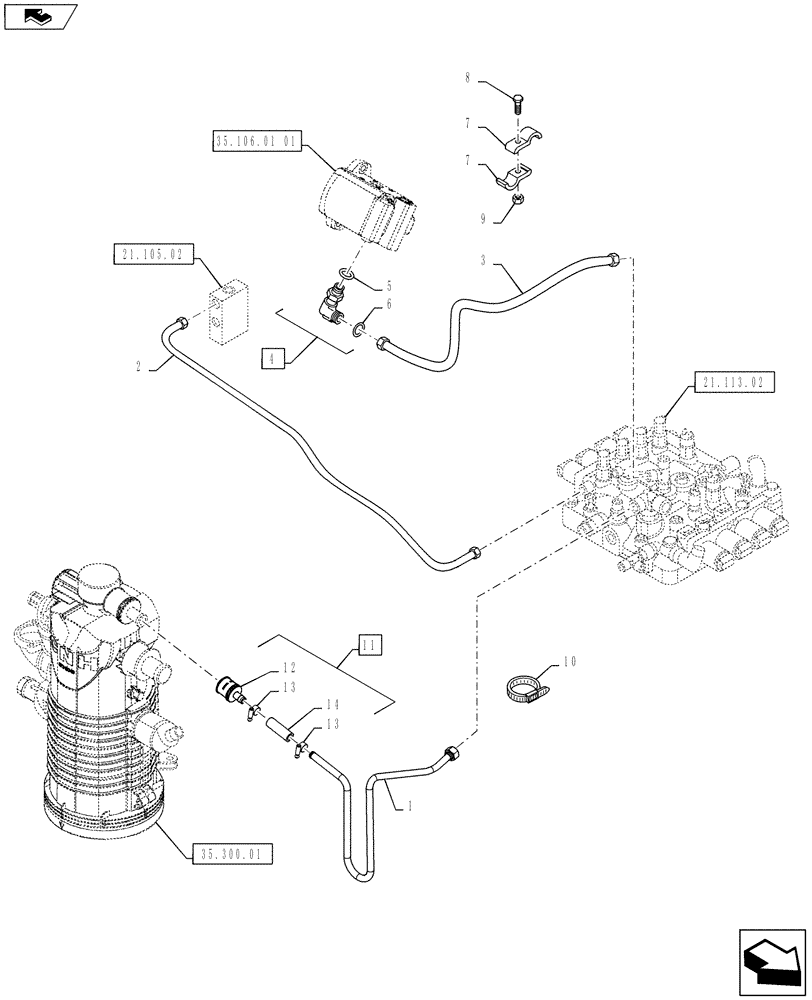

Запчасти Case IH PUMA 145 (21.105.01[02]) - VAR - 330285 - FPS TRANSMISSION LUBRICATION LINES - D7070 (21) - TRANSMISSION

1

84352738

HYD TUBE

Pressure

1шт.

2

87519153

PIPE

Front Lube

1шт.

3

87580031

PIPE

Residual Flow

1шт.

4

5185562

ELBOW

Incl 5, 6

1шт.

5

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

6

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

7

5156374

CLAMP

2шт.

8

10902624

SCREW,Hex, M6 x 25mm, Cl 8.8, Full Thd

1шт.

9

12574221

NUT,M6 x 1, Cl 10

1шт.

10

13001090

HOSE CLAMP,70mm - 90mm, Worm Gear

1шт.

11

84352585

HYD CONNECTOR

Incl 12 - 14

1шт.

12

87330801

HYD CONNECTOR,21mm D x 12.5mm D

1шт.

13

82039344

HOSE CLAMP,20mm - 32mm

2шт.

14

84352586

HOSE,15.9mm ID x 70mm L, SAE 100R6

1шт.
