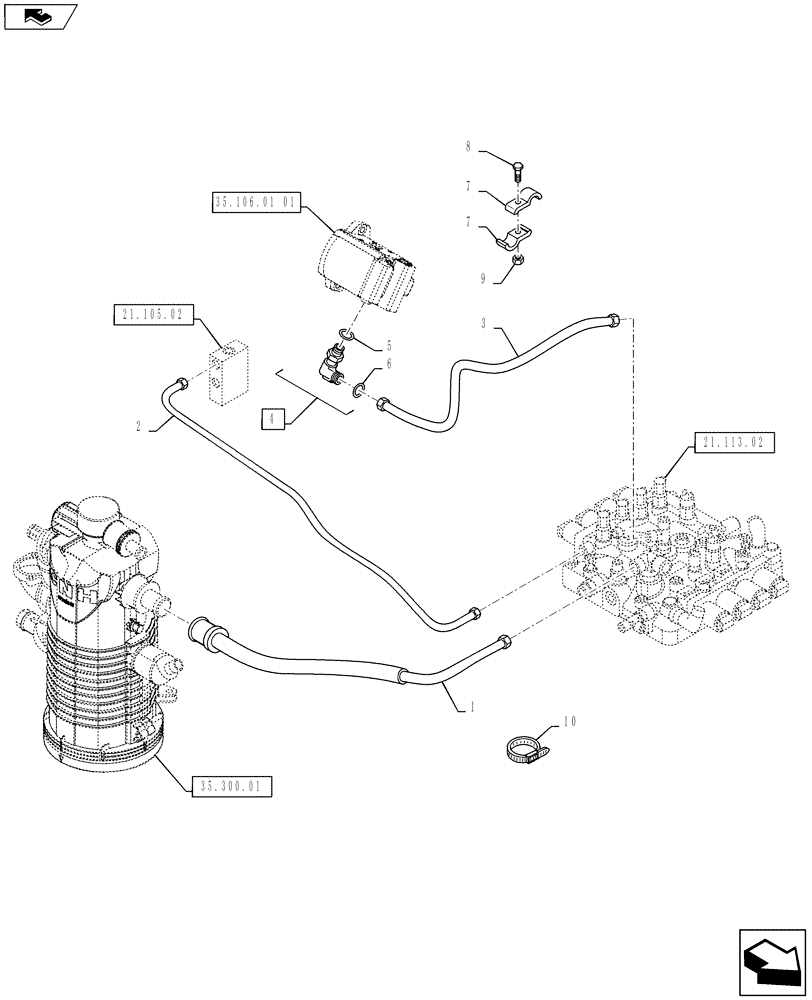

Запчасти Case IH PUMA 145 (21.105.01[01]) - VAR - 330285 - FPS TRANSMISSION LUBRICATION LINES - C7070 (21) - TRANSMISSION

1

87519152

PIPE

Added Lube

1шт.

2

87519153

PIPE

Front Lube

1шт.

3

87580031

PIPE

Residual Flow

1шт.

4

5185562

ELBOW

Incl 5, 6

1шт.

5

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

6

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

7

5156374

CLAMP

2шт.

8

10902624

SCREW,Hex, M6 x 25mm, Cl 8.8, Full Thd

1шт.

9

12574221

NUT,M6 x 1, Cl 10

1шт.

10

13001090

HOSE CLAMP,70mm - 90mm, Worm Gear

1шт.
