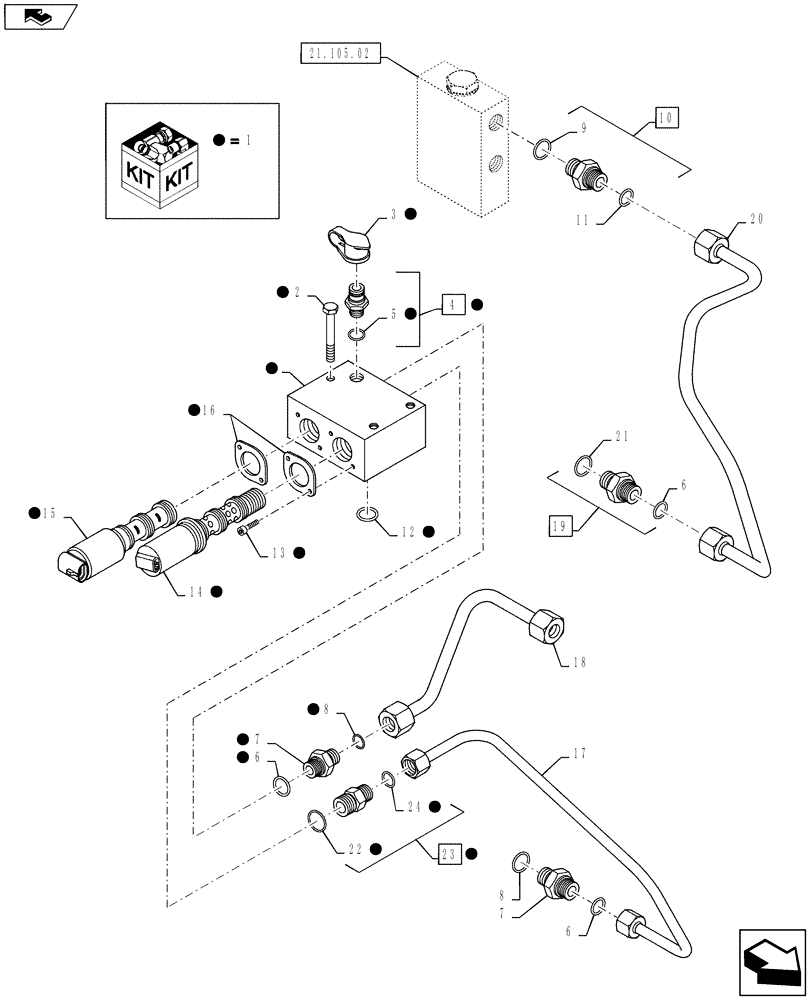

Запчасти Case IH PUMA 145 (21.103.05) - VAR - 743734, 331291, 332291, 743735, 331247 - SPS & FPS - VALVE AND PIPES (21) - TRANSMISSION

1

87315602

HYDRAULIC VALVE

Incl 2 - 4, 12 - 16

1шт.

2

16044524

SCREW,Hex, M8 x 1.25 x 65mm, Cl 8.8

3шт.

3

5185424

DUST CAP,11.5mm ID x 81.5 L, Black

1шт.

4

5185423

COUPLING

Incl 5

1шт.

5

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

6

14437885

O-RING,13.30mm ID x 2.40mm

3шт.

7

5192374

HYD CONNECTOR,11/16-16 ORFS x M16 x 1.5 ORB

2шт.

8

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

2шт.

9

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

10

86579675

HYD CONNECTOR,13/16"-16 ORFS x M16 x 1.5 ORB

Incl 9, 11

1шт.

11

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

12

14457081

O-RING,12.37mm ID x 2.62mm

1шт.

13

14305121

HEX SOC SCREW,M6 x 12mm, Cl 8.8

4шт.

14

87739558

SOLENOID VALVE,14W

1шт.

14

87739558R

REMAN-SOLENOID

1шт.

14

87739558C

CORE-SOLENOID

Return Number

1шт.

15

84276869

SOLENOID

1шт.

16

5194826

BRACKET

2шт.

17

87519138

PIPE

Lube

1шт.

18

87519127

PIPE

Front

1шт.

19

87519126

HYD CONNECTOR,13/16"-16 x M16 x 1.5

Incl 6, 21

1шт.

20

87661022

PIPE

Rear Lube

1шт.

21

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

22

81845038

O-RING,0.5" ID x 0.07" Thk

1шт.

23

82019684

HYD CONNECTOR,13/16-16 ORFS x M16 x 1.5 ORB

Incl 22, 24

1шт.

24

82019812

SEAL,13.8mm ID x 8.9mm OD x 1.5mm Thk

1шт.
