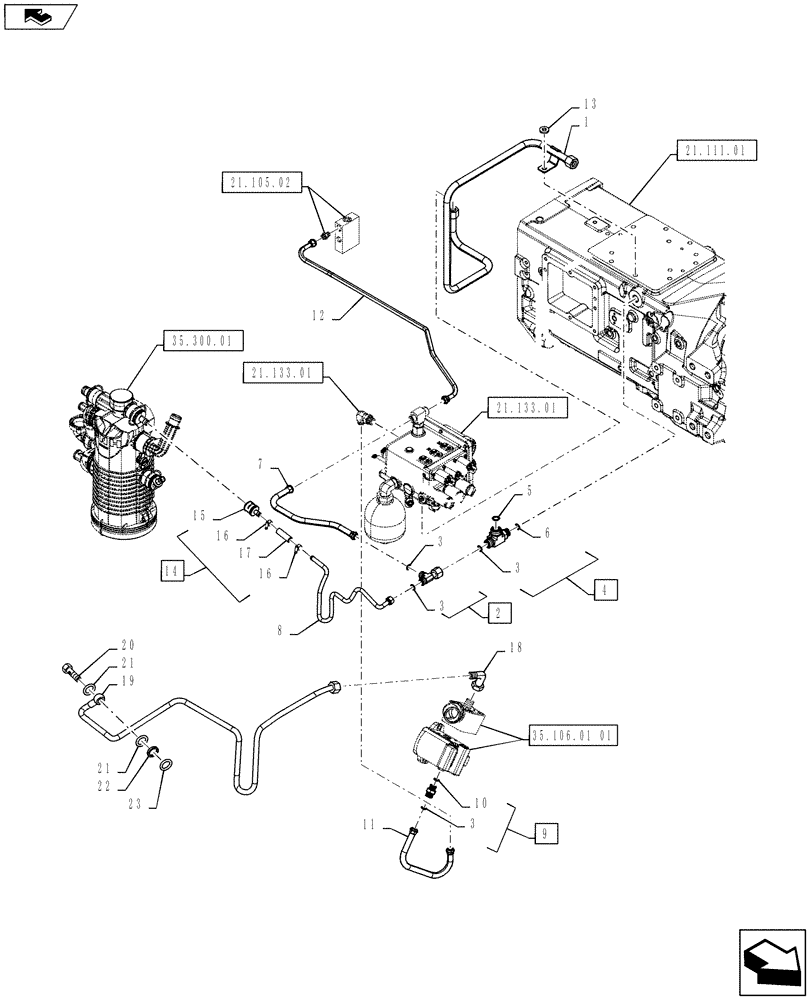

Запчасти Case IH PUMA 145 (21.103.01[02]) - VAR - 390283 - SPS - TRANSMISSION LUBRICATION LINES - D7070 (21) - TRANSMISSION

1

84283174

PIPE

Rear Delivery Pipe to Oil Cooler

1шт.

2

47134655

TEE,1"-14 ORFS x 1"-14 ORFS x 1"-14

Incl 3

1шт.

3

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

4

87347550

HYD CONNECTOR,1"14 x 1"3/16 -12 x M22 x 1.5

Incl 3, 5, 6

1шт.

5

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.

6

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

7

87519183

PIPE

Oil Cooler Discharge

1шт.

8

84352739

HYD TUBE

Lube

1шт.

9

5185046

HYD CONNECTOR,1-14 ORFS x M18 x 1.5 ORB

Incl 3, 10

1шт.

10

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

11

87580026

PIPE

1шт.

12

87570549

PIPE

Front Lube

1шт.

13

14496611

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

14

84352585

HYD CONNECTOR

Incl 15 - 17

1шт.

15

87330801

HYD CONNECTOR,21mm D x 12.5mm D

1шт.

16

82039344

HOSE CLAMP,20mm - 32mm

2шт.

17

84352586

HOSE,15.9mm ID x 70mm L, SAE 100R6

1шт.

18

84398299

90 ELBOW

1шт.

19

84398294

HYD TUBE

1шт.

20

5170235

BANJO BOLT,M18 x 1.5 x 35mm

1шт.

21

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

2шт.

22

84398569

SPACER,18.5mm ID x 24.5mm OD x 5mm L

1шт.

23

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

1шт.
