Запчасти Case IH PUMA 140 (1.15.1/01[01]) - VERTICAL EXHAUST WITH EXHAUST BRAKE - EXHAUST SYSTEM AND SUPPORT (VAR.330468) (02) - ENGINE EQUIPMENT

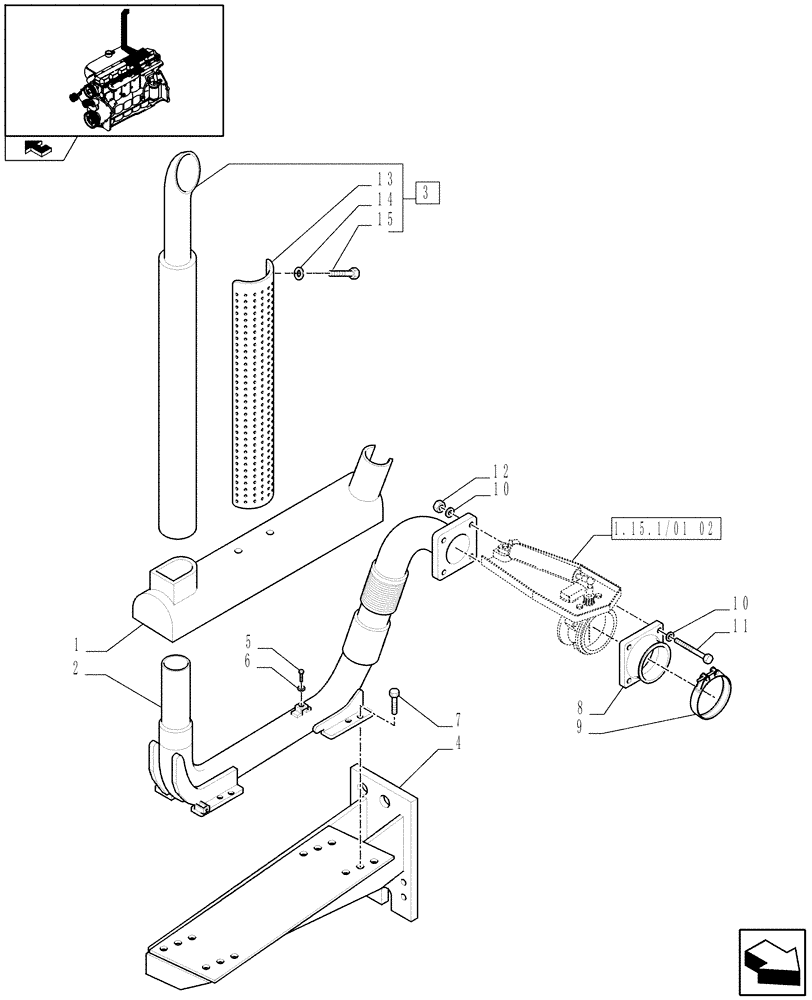

Схема запчастей Case IH PUMA 140 - (1.15.1/01[01]) - VERTICAL EXHAUST WITH EXHAUST BRAKE - EXHAUST SYSTEM AND SUPPORT (VAR.330468) (02) - ENGINE EQUIPMENT
14
8
13
5
12
6
2
10
1.15.1/01 02
home
1
7
9
15
10
11
3
4

Артикул

Название

Примечание

Количество

1

84138205

SHIELD

1шт.

2

84138203

EXHAUST SYSTEM PIPE

1шт.

3

87396433

MUFFLER,W/ Spark Arrester, Aspirated

1шт.

4

84138204

SUPPORT

1шт.

5

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

5шт.

6

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

5шт.

7

14432334

HEX SOC SCREW,M10 x 1.5 x 22mm, Cl 10.9, Full Thd

8шт.

8

87651109

FLANGE

1шт.

9

87524289

CLAMP,81mm

1шт.

10

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

8шт.

11

43133

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

4шт.

12

43362

NUT,M8 x 1.25, Cl 10

4шт.

13

84203727

SHIELD

1шт.

14

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

8шт.

15

14759521

SCREW,M6 x 14mm

8шт.

Выбрано товаров: 15
