Запчасти Case IH PUMA 140 (1.14.7/01) - FUEL TANK WITH GUARD - GUARD (VAR.330142) (02) - ENGINE EQUIPMENT

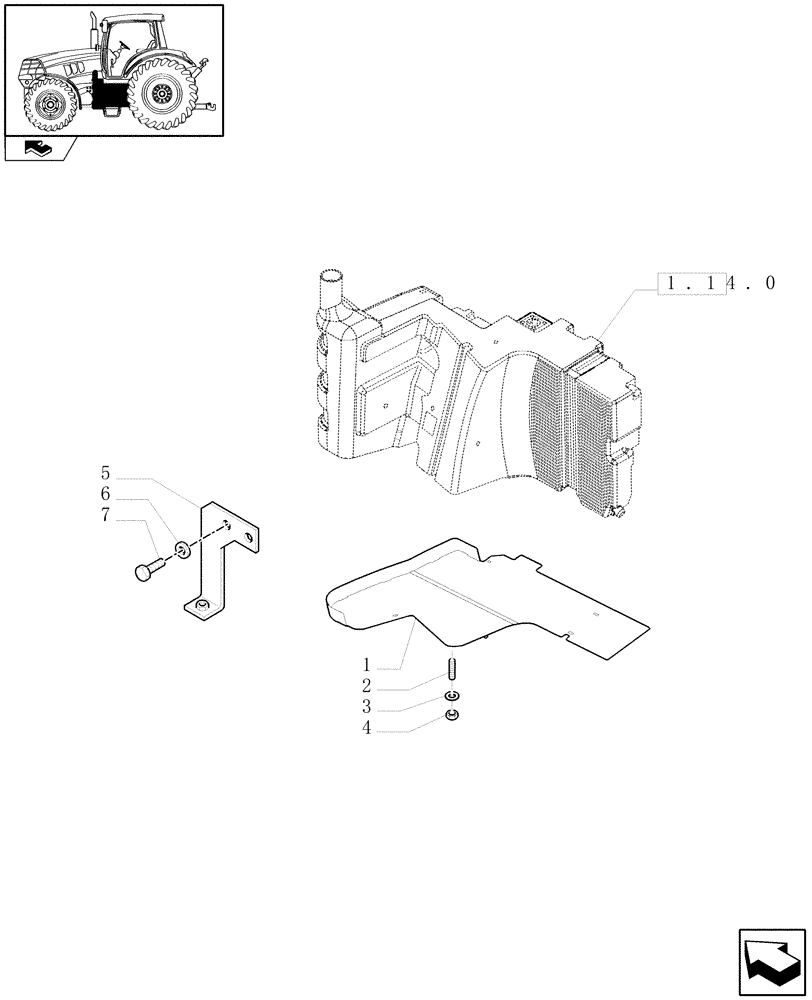

Схема запчастей Case IH PUMA 140 - (1.14.7/01) - FUEL TANK WITH GUARD - GUARD (VAR.330142) (02) - ENGINE EQUIPMENT
6
2
1
1.14.0
3
7
5
4
home

Артикул

Название

Примечание

Количество

1

87747019

SHIELD

1шт.

2

82008683

STUD,M10 x 1.25 x 40mm L

4шт.

3

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

4шт.

4

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

4шт.

5

87571013

SUPPORT

1шт.

6

14496704

WASHER,13mm ID x 24mm OD x 2.5mm Thk

13 x 24 x 2.5MM

2шт.

7

11112221

SCREW,Hex, M12 x 25mm, Cl 8.8, Full Thd

2шт.

Выбрано товаров: 7
