Запчасти Case IH PUMA 140 (0.32.3[01]) - ENGINE COOLING SYSTEM PIPING (01) - ENGINE

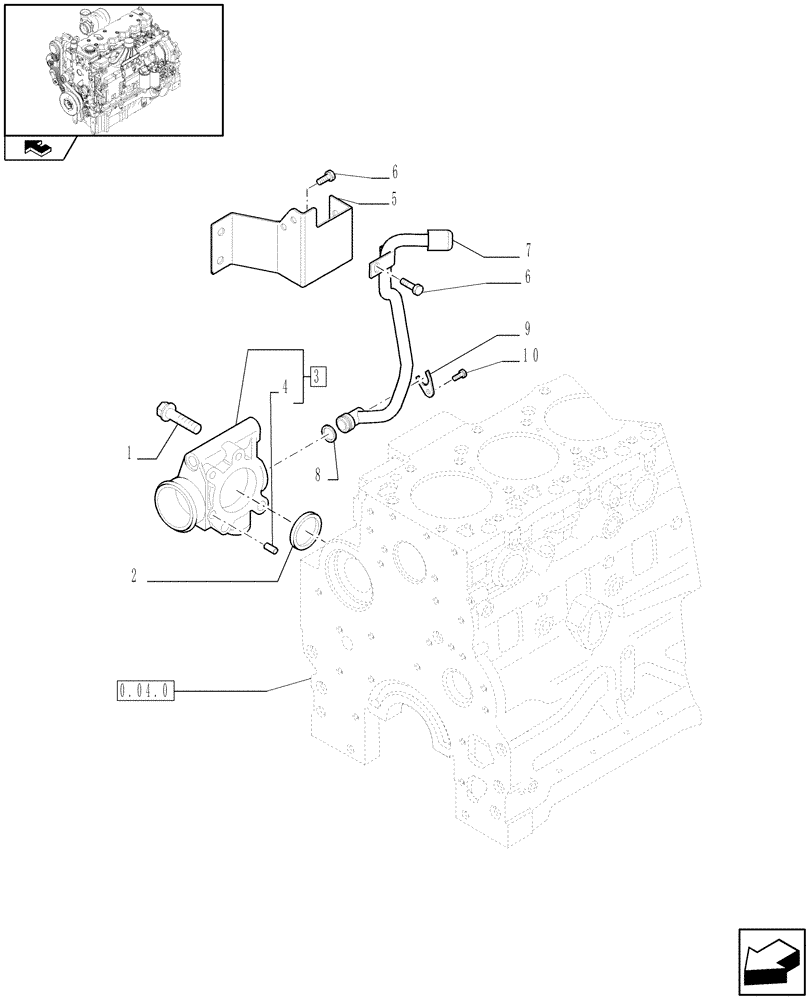

Схема запчастей Case IH PUMA 140 - (0.32.3[01]) - ENGINE COOLING SYSTEM PIPING (01) - ENGINE
1
8
9
5
7
home
3
2
10
0.04.0
6
4
6

Артикул

Название

Примечание

Количество

1

4895174

SCREW,Flg Hd, M10 x 1.5 x 65

3шт.

2

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

1шт.

3

2831186

SUPPORT

1шт.

Std Equipment for Puma 125 and Puma 140 Models; with Japan Engine, VAR.330004, for Puma 155 Model

1шт.

3

2859452

SUPPORT

1шт.

Std Equipment for Puma 155 Model

1шт.

4

2830894

DOWEL,.25" OD x .625" L

2шт.

5

2853561

BRACKET

1шт.

Std Equipment for Puma 125 and Puma 140 Models; with Japan Engine, VAR.330004, for Puma 155 Model

1шт.

5

2859245

SUPPORT

1шт.

Std Equipment for Puma 155 Model

1шт.

6

2852100

FLANGE BOLT,Hex, M8 x 1.25 x 16mm

4шт.

7

2853999

PIPE ASSY.

1шт.

8

2853563

O-RING,20.29mm ID x 2.62mm

1шт.

9

2853564

BRACKET

1шт.

10

2854000

SELF-TAP SCREW,Hex, M6 x 16mm

1шт.

Выбрано товаров: 16
