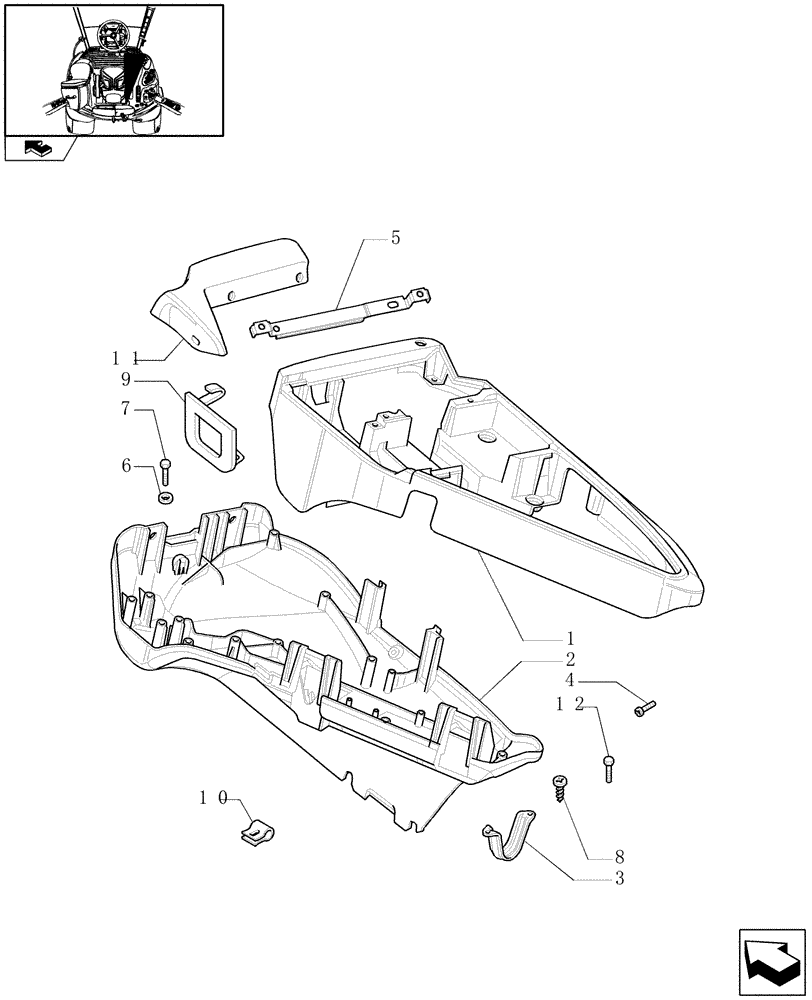

Запчасти Case IH PUMA 140 (1.97.0/01) - COMMAND ARM FOR ELECTROHYDRAULIC REMOTES - COVERS (VAR.332022-332023-332024) (10) - OPERATORS PLATFORM/CAB

1

84150708

SHELL

1шт.

2

87485760

HALF-SHELL

1шт.

3

87579853

RETAINER,14.9mm W x 56.7mm L

1шт.

4

13276217

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 5.8, Full Thd

11шт.

5

84226106

BRACKET

1шт.

6

14498804

WASHER,6.4mm ID x 16.3mm OD x 1mm Thk

1шт.

7

82016959

SCREW,M3.5 x 12mm

1шт.

7

13276017

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 5.8, Full Thd

2шт.

8

13272617

SCREW,Pozidriv Pan Hd, M4 x 25mm, Cl 5.8

2шт.

9

84150714

BEZEL

SHELL

1шт.

10

14369071

SPRING NUT,4.8mm x 14.6mm x 4mm

NUT

4шт.

11

84202333

SUPPORT

1шт.

12

15903977

SELF-TAP SCREW,Pan Head, M4.8 x 1.6 x 19mm

4.8 x 19

2шт.
