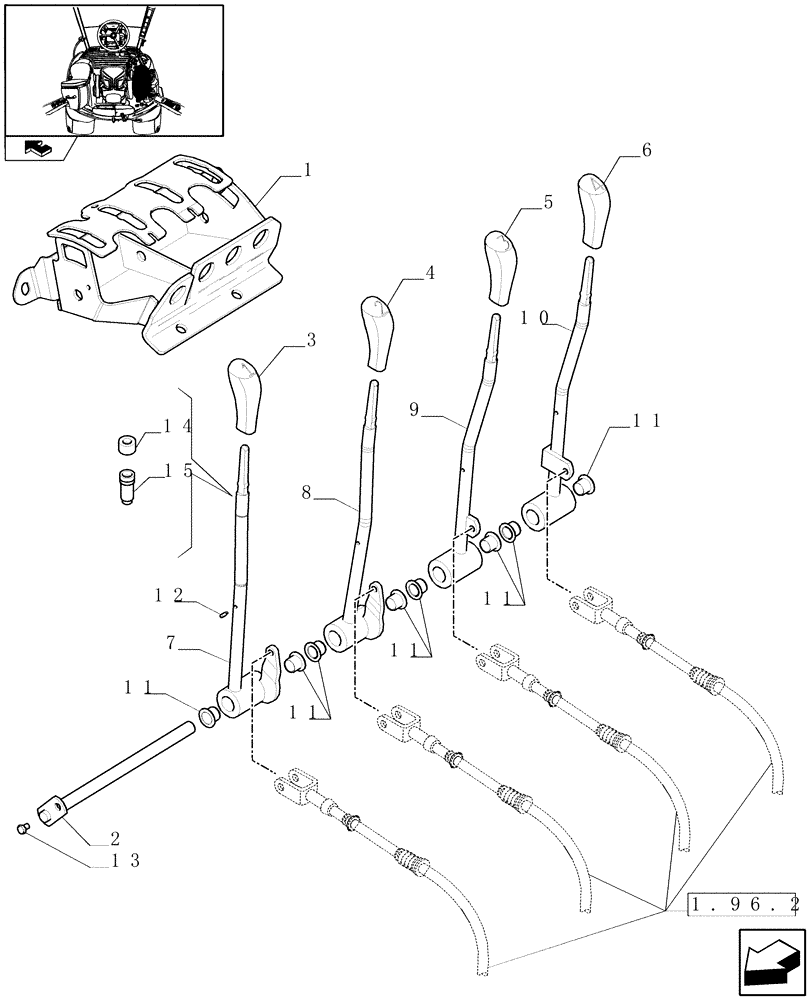

Запчасти Case IH PUMA 140 (1.96.2/02[01]) - 4 MECHANICAL REAR REMOTE CONTROL VALVES - FRAME AND CONTROL LEVERS (VAR.333845) (10) - OPERATORS PLATFORM/CAB

1

84174782

FRAME

, Serial Range: -C6919

1шт.

1

84373709

FRAME

, Start Serial: D6919

1шт.

2

84186398

HANDLED SHAFT

1шт.

3

82037910

KNOB

1st Control Lever

1шт.

4

82037911

KNOB

2nd Control Lever

1шт.

5

82037912

KNOB

3rd Control Lever

1шт.

6

82037913

KNOB

4th Control Lever

1шт.

7

84174789

LEVER

, Serial Range: -C6919

1шт.

7

84373726

LEVER

, Start Serial: D6919

1шт.

8

84174790

LEVER

, Serial Range: -C6919

1шт.

8

84373733

LEVER

, Start Serial: D6919

1шт.

9

84174791

LEVER

, Serial Range: -C6919

1шт.

9

84373742

LEVER

, Start Serial: D6919

1шт.

10

84174792

LEVER

, Serial Range: -C6919

1шт.

10

84373782

LEVER

, Start Serial: D6919

1шт.

11

82035633

BUSHING

8шт.

12

84209523

SPRING LOCK

4шт.

13

86505761

BOLT,Hex, M5 x 0.8 x 8mm, Cl 8.8, Full Thd

1шт.

14

84209516

LOCKING DEVICE

4шт.

15

84209520

LOCKING DEVICE

4шт.
