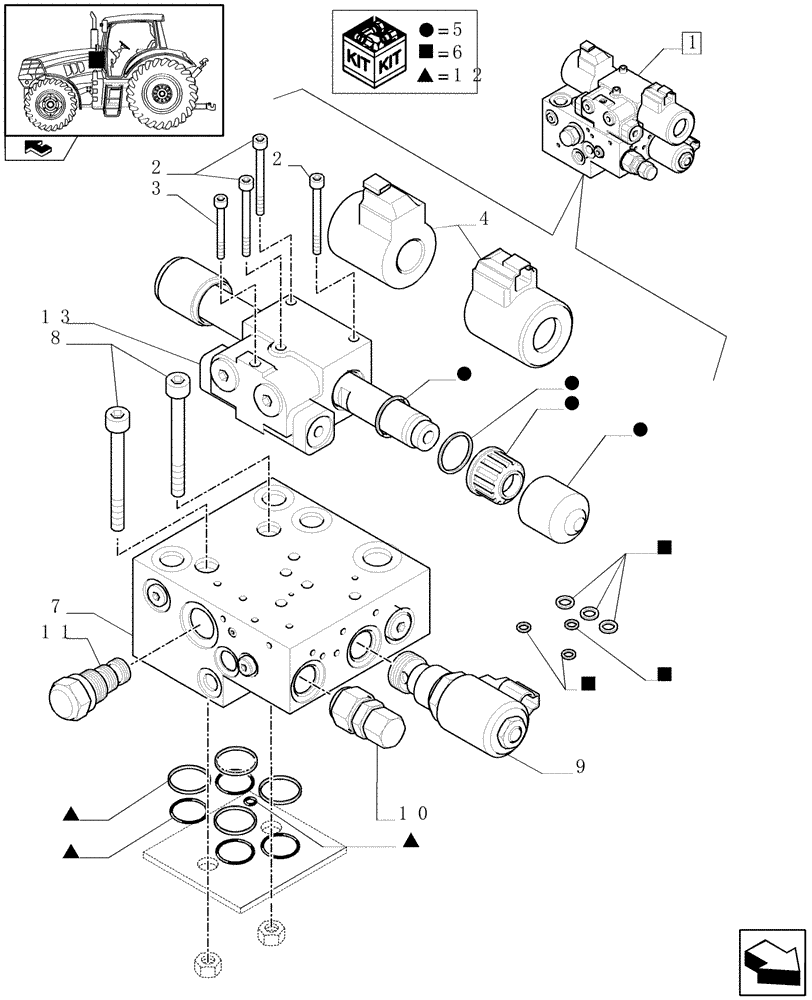

Запчасти Case IH PUMA 140 (1.95.5/03A) - AUTOGUIDANCE VALVES - BREAKDOWN (10) - OPERATORS PLATFORM/CAB

1

84166215

VALVE SECTION

ASSY, For CVT Tractors Only

1шт.

2

14304871

HEX SOC SCREW,M6 x 55mm, Cl 12.9

3шт.

3

14304731

SCREW,M5 x 50mm, Cl 10.9

1шт.

4

84160390

COIL

ASSY

2шт.

5

84160386

SEAL

1шт.

6

84160427

SEAL

1шт.

7

87696385

HYDRAULIC MANIFOLD

1шт.

8

84160398

BOLT,Hex, #10 - 32 x 90mm, Cl 12.9

M10

2шт.

9

84178785

ELECTRO-VALVE

1шт.

10

84180623

VALVE PRESSURE RELIE

1шт.

11

84160409

SHUT-OFF VALVE

1шт.

12

84160425

SEAL

1шт.

13

87696384

PILOT VALVE

1шт.
