(1.95.5/01[01]) - FAST STEERING - WHEEL AND COLUMN (VAR.330631-336631)

Запчасти Case IH PUMA 140 (1.95.5/01[01]) - FAST STEERING - WHEEL AND COLUMN (VAR.330631-336631) (10) - OPERATORS PLATFORM/CAB

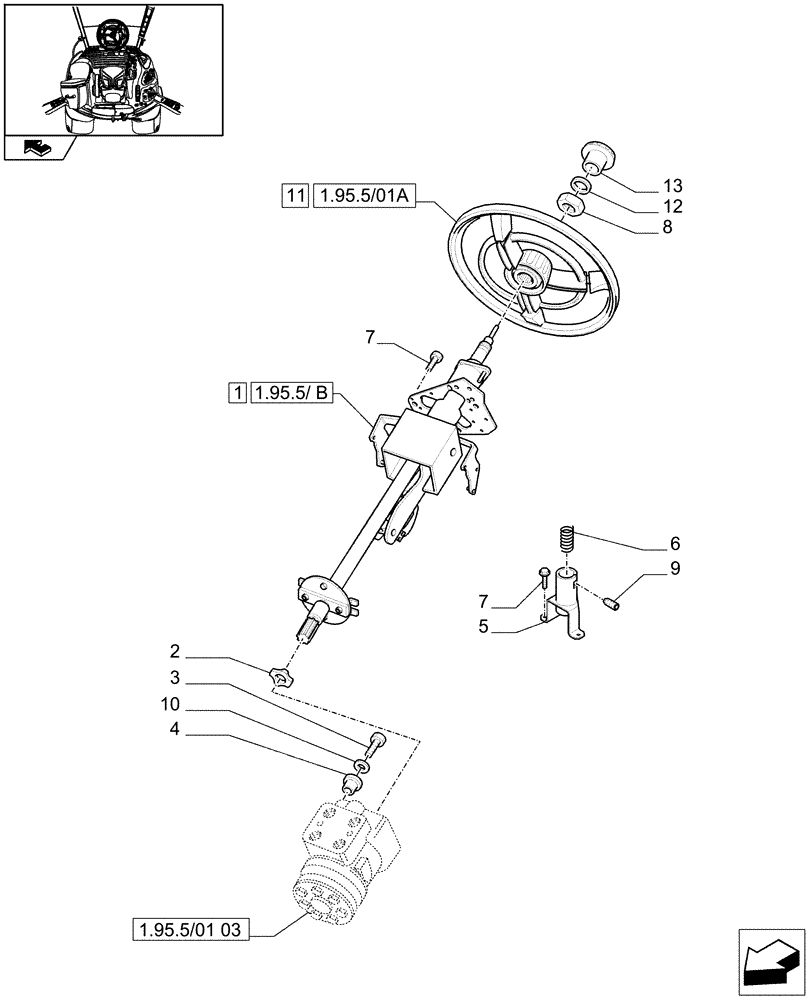

Схема запчастей Case IH PUMA 140 - (1.95.5/01[01]) - FAST STEERING - WHEEL AND COLUMN (VAR.330631-336631) (10) - OPERATORS PLATFORM/CAB
1.95.5/01 03
7
3
2
home
8
7
11
4
12
1
13
10
6
1.95.5/ b
9
5
1.95.5/01a
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84255779

STEERING COLUMN,Tilting, Telescoping

ASSY

1шт.

2

81873344

RUBBER INSULATOR

1шт.

3

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

4шт.

4

82009429

ISOLATOR

4шт.

5

87650958

BRACKET

1шт.

6

82012555

SPRING

1шт.

7

15957101

SELF-TAP SCREW,Pan, M3.5 x 10.00mm, R40, ZND

4шт.

8

10726611

THIN NUT,Thin, M18, 1.5mm Pitch, Cl 04, ZND

1шт.

9

13802121

SCREW,M4 x 5mm, Cl 8.8

1шт.

10

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

11

87330391

STEERING WHEEL

1шт.

12

47136225

PLUG

1шт.

13

87350612

KNOB

1шт.
