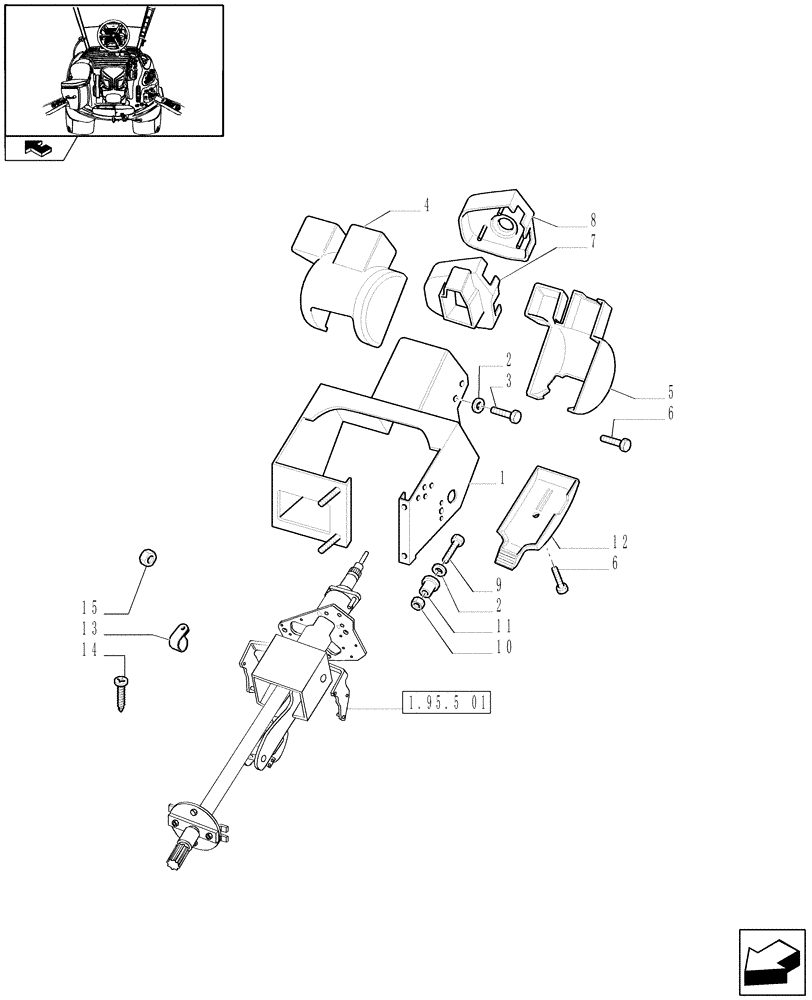

Запчасти Case IH PUMA 140 (1.95.5[02]) - COVERING SUPPORT - STEERING COLUMN (10) - OPERATORS PLATFORM/CAB

1

87579189

SUPPORT

1шт.

2

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

6шт.

2

83904166

WASHER,10.5mm ID x 30mm OD x 4mm Thk

4шт.

3

11106621

BOLT,Hex, M10 x 35mm, Cl 8.8, Full Thd

4шт.

4

82036446

COVER

1шт.

5

82036756

COVER

1шт.

6

13301111

SCREW,Pozidriv Flat Hd, Csk, M6 x 12mm, Cl 5.8

7шт.

7

87568062

COVER

1шт.

8

87568061

COVER

1шт.

9

11107221

BOLT,Hex, M10 x 50mm, Cl 8.8

4шт.

10

11701711

NUT,Hex, M10, Cl 8, ZND

2шт.

11

82027074

SPACER,20mm ID x 30mm OD x 25mm L

6шт.

12

82036958

HANDLE

Column Adjust

1шт.

13

82036750

CLAMP,10mm ID, 4mm Bolt Hole, P Type

1шт.

14

15959301

SELF-TAP SCREW,M5 x 3 x 25.00mm, R40, ZND

5шт.

15

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

1шт.
