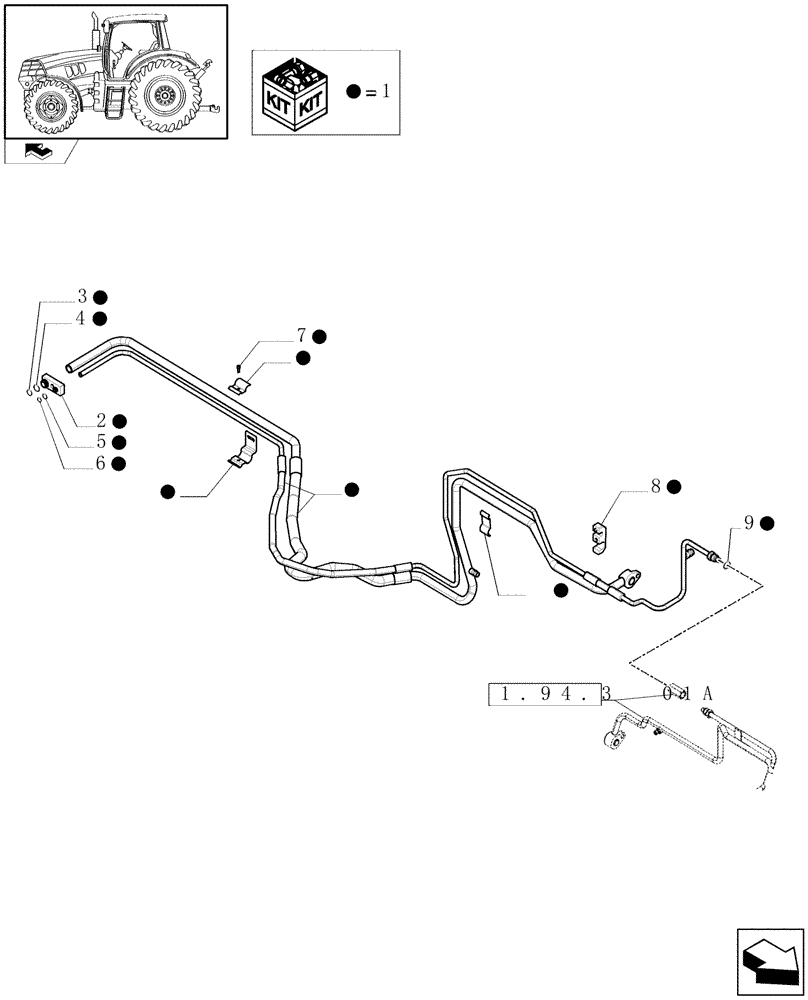

Запчасти Case IH PUMA 140 (1.94.3[02A]) - AIR CONDITIONING SYSTEM PIPES - D6663 - C7156 (10) - OPERATORS PLATFORM/CAB

1

84239236

PIPE

, Serial Range: -C6627

1шт.

Incl PN 86511148 Cap High Side Charge Port and PN 86511149 Cap Low Side (not illustrated)

1шт.

1

84274536

TUBE

, Start Serial: D6627

1шт.

Incl PN 86511148 Cap High Side Charge Port and PN 86511149 Cap Low Side (not illustrated)

1шт.

2

84233862

CONNECTING BLOCK

1шт.

3

82007848

O-RING,2.4mm Thk x 13.4mm ID

1шт.

4

10319983

O-RING,1.6mm Thk x 16.1mm ID

1шт.

5

10318883

O-RING,8.1mm ID x 1.6mm Width

1шт.

6

82007847

O-RING,1.8mm Thk x 6.7mm ID

1шт.

7

14303021

SCREW,M4 x 12mm, Cl 8.8, Full Thd

1шт.

8

84233825

CLAMP

1шт.

9

82000793

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

1шт.
