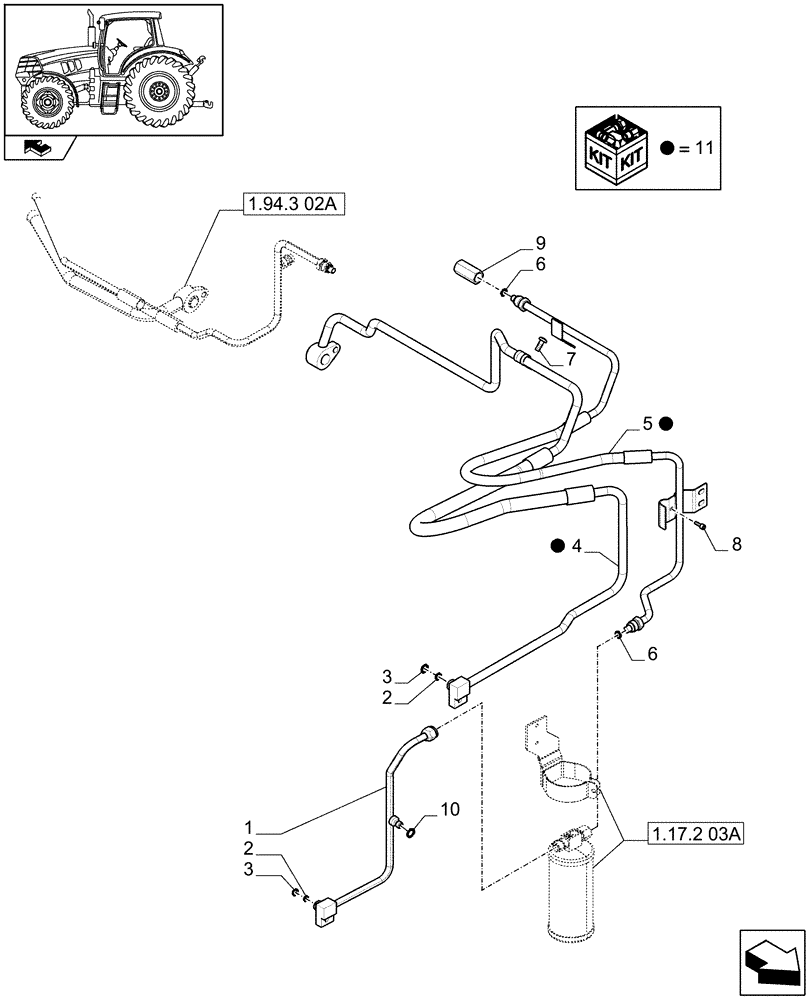

Запчасти Case IH PUMA 140 (1.94.3[01B]) - AIR CONDITIONING SYSTEM PIPES - D7161 (10) - OPERATORS PLATFORM/CAB

1

84493135

HYD TUBE

Incl. 2, 3, 10

1шт.

2

10319183

O-RING,13.1mm ID x 1.6mm Width

2шт.

3

14450683

O-RING,10.8mm ID x 2.4mm Width

2шт.

4

47418354

PIPE

Incl. 2, 3

1шт.

5

47418365

PIPE

Incl. 6

1шт.

6

82000793

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

2шт.

7

81853129

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 4.8, Full Thd

1шт.

8

14303021

SCREW,M4 x 12mm, Cl 8.8, Full Thd

1шт.

9

87738978

ADAPTER

1шт.

10

9827060

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

1шт.

11

84475921

SERVICE KIT

ASSY, Air Conditioning Hoses, Incl. 4, 5

1шт.
