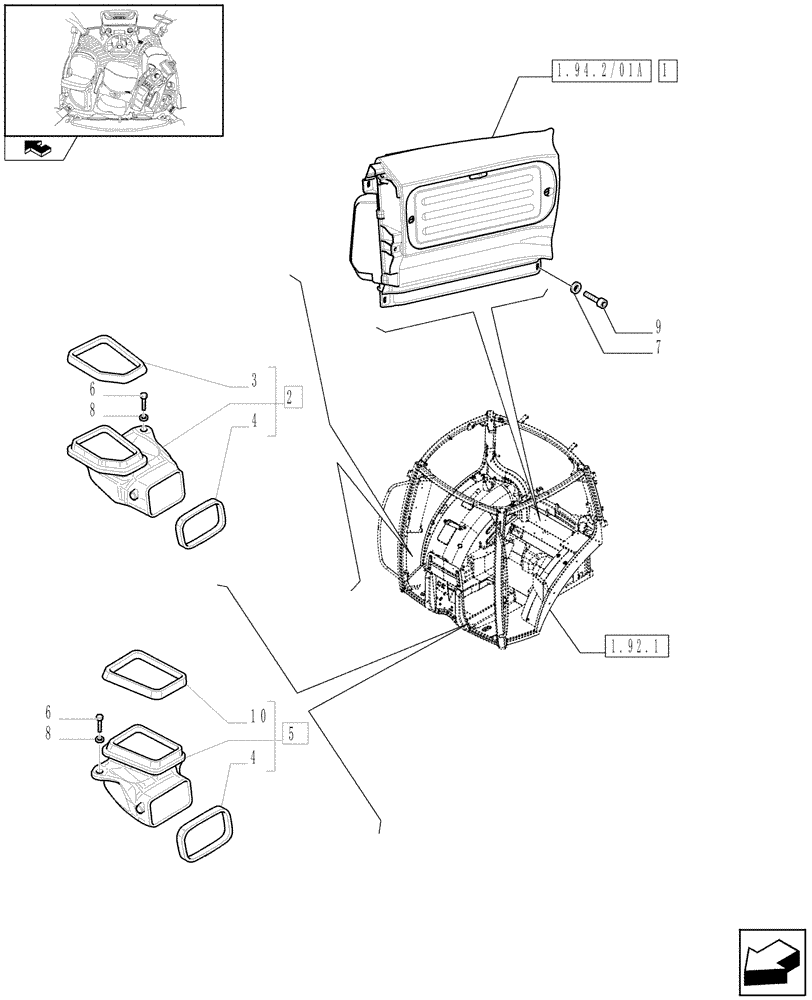

Запчасти Case IH PUMA 140 (1.94.2/01[01]) - AIR CONDITIONING WITH AUTOMATIC CLIMATE CONTROL - FAN AND VENTILATION DUCTS (VAR.330643) (10) - OPERATORS PLATFORM/CAB

1

87651397

BLOWER

ASSY

1шт.

2

87518106

DUCT

RH, Incl. 3, 4

1шт.

3

87523583

SEAL

1шт.

4

87523573

SEAL

2шт.

5

87390278

DUCT

LH, Incl. 10, 4

1шт.

6

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

2шт.

7

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

2шт.

8

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

2шт.

9

83962783

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 4.8, Full Thd

2шт.

10

87523726

SEAL

1шт.
