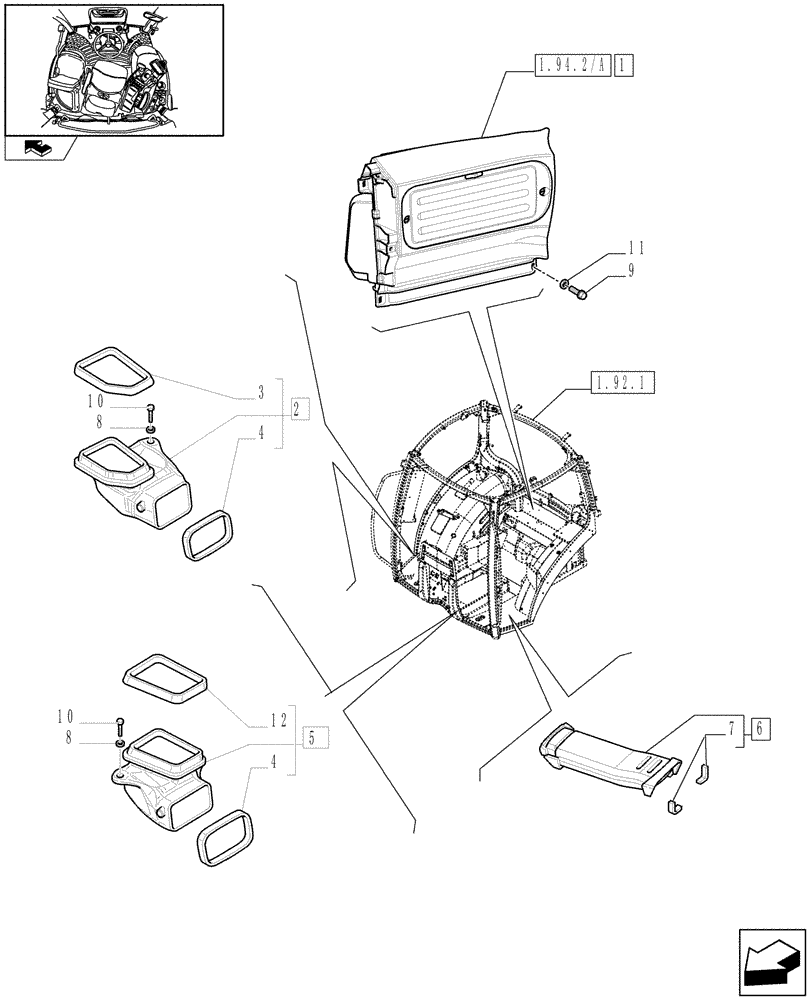

Запчасти Case IH PUMA 140 (1.94.2[01]) - HEATING/AIR CONDITIONING - FAN AND VENTILATION DUCTS (10) - OPERATORS PLATFORM/CAB

1

87651396

BLOWER,12V

ASSY

1шт.

2

87518106

DUCT

RH, Incl. 3, 4

1шт.

3

87523583

SEAL

1шт.

4

87523573

SEAL

2шт.

5

87390278

DUCT

LH, Incl. 12, 4

1шт.

6

87301551

DUCT

RH

1шт.

6

87301550

DUCT

LH

1шт.

7

82033009

SEAL

4шт.

8

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

2шт.

9

83962783

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 4.8, Full Thd

M6 x 20

2шт.

10

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

2шт.

11

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

12

87523726

SEAL

1шт.
