Запчасти Case IH PUMA 140 (1.94.0/06[01]) - AUTOGUIDANCE SYSTEM READY - RECEIVER SUPPORT (VAR.330077-331077) - C7409 (10) - OPERATORS PLATFORM/CAB

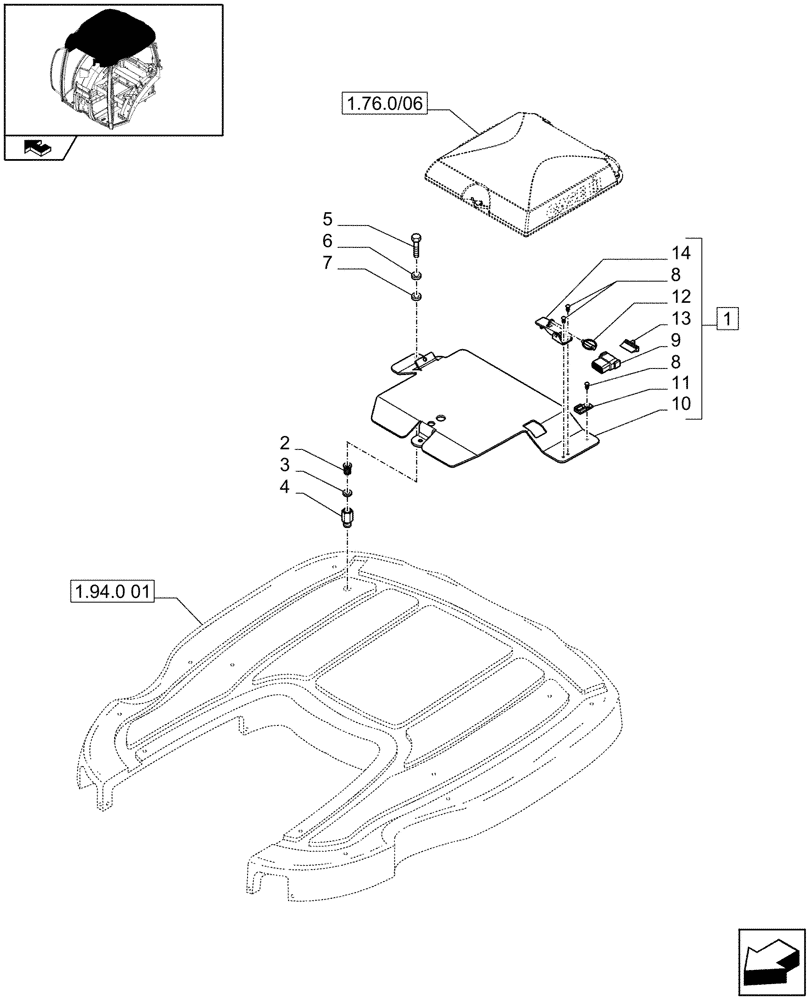

Схема запчастей Case IH PUMA 140 - (1.94.0/06[01]) - AUTOGUIDANCE SYSTEM READY - RECEIVER SUPPORT (VAR.330077-331077) - C7409 (10) - OPERATORS PLATFORM/CAB
1.76.0/06
2
5
1
4
14
home
11
8
6
9
12
7
8
10
13
3
1.94.0 01

Артикул

Название

Примечание

Количество

1

87634999

SUPPORT

ASSY, Incl 8 - 14

1шт.

2

87652569

INSERT,M6 x 14 mm L

3шт.

3

81869856

WASHER,6mm ID x 17mm OD

3шт.

4

82034114

SPACER,M6 x 25mm L

3шт.

5

10902434

SCREW,Hex, M6 x 20mm, Cl 10.9, Full Thd

3шт.

6

12647607

WASHER,6.15mm ID x 16mm OD x 2mm Thk

3шт.

7

10615479

LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk

3шт.

8

87308841

RIVET,Pop, 3.97mm OD x 10.79mm L

3шт.

9

87641584

MULTIPOLE CONNECTOR,12 Pole

1шт.

10

NSS

NOT SOLD SEPARAT

Support, Incl in 1

1шт.

11

87641585

MOUNTING PARTS

1шт.

12

87109290

LOCK PIN,25.4mm OD x 30mm L

1шт.

13

87648972

WEDGE,Lock, Orange

1шт.

14

87308870

LATCH

1шт.

Выбрано товаров: 14
