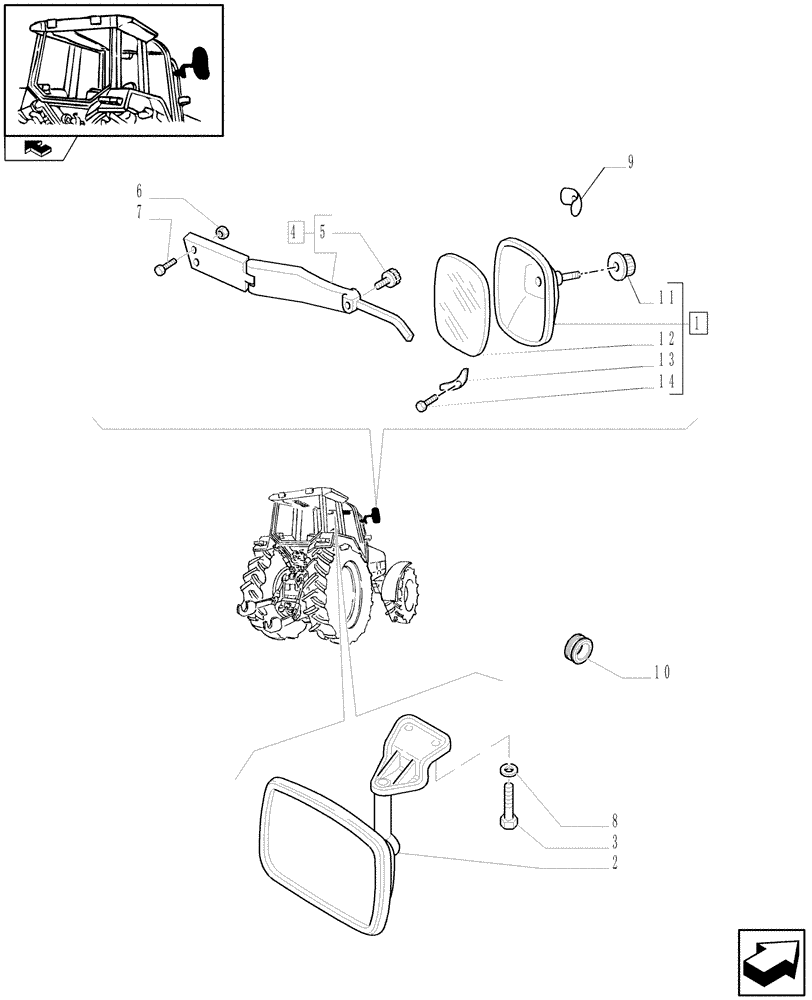

Запчасти Case IH PUMA 140 (1.93.6) - TELESCOPIC REAR VIEW MIRROR (10) - OPERATORS PLATFORM/CAB

1

87339177

MIRROR ASSY.

2шт.

2

87556793

MIRROR

1шт.

3

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

4

87314382

ARM

RH, Serial Range: -C7119

1шт.

4

84398575

MIRROR ARM

, Start Serial: D7119

1шт.

4

87314381

MIRROR ARM

LH

1шт.

5

87365131

KNOB

2шт.

6

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

4шт.

7

81869630

HEX SOC SCREW,M10 x 35mm, Cl 8.8

4шт.

8

14496404

WASHER,M6 x 12 x 2 Thk

2шт.

9

82035908

WASHER

2шт.

10

82039492

GROMMET,6mm ID x 20mm OD, Rubber

2шт.

11

82016257

KNOB

2шт.

12

82015244

REPLACEMENT MIRROR,152.199mm x 253mm

10" Length x 6" Wide

2шт.

12

82035218

MIRROR,300mm x 200mm

300 x 200mm (12.5" Length x 9" Wide)

2шт.

13

87531094

BRACKET

4шт.

14

15902707

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 19mm

4шт.
