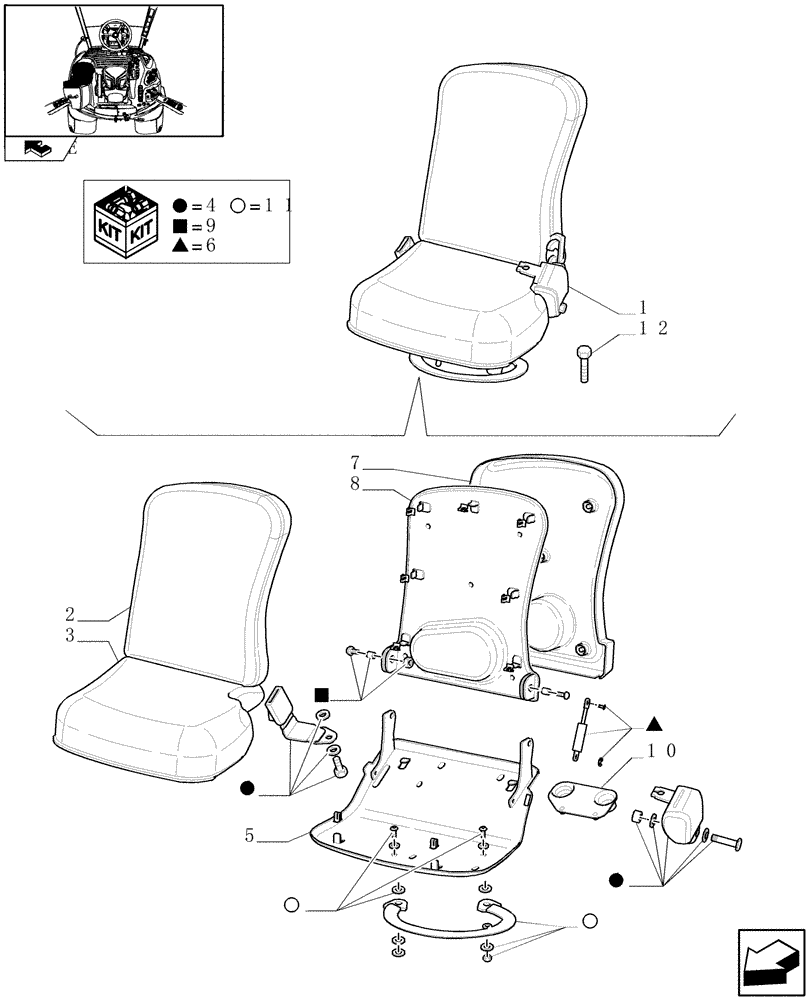

Запчасти Case IH PUMA 140 (1.93.3/03) - PASSENGER SEAT (VAR.330719) (10) - OPERATORS PLATFORM/CAB

1

87487002

SEAT

1шт.

2

84146851

BACKREST

Back Cushion

1шт.

3

84146864

SEAT CUSHION

Seat Cushion

1шт.

4

82033397

SERVICE KIT

Seat Belt

1шт.

5

84146873

SEAT SUPPORT

Seat Pan

1шт.

6

82033399

SERVICE KIT

Gas Strut

1шт.

7

82033401

KIT

Tray

1шт.

8

84146874

SEAT SUPPORT

Back Pan

1шт.

9

82033403

SERVICE KIT

Pivot Bearning

1шт.

10

84146875

SEAT ACCESSORY

1шт.

11

82033405

KIT

Grab Handle

1шт.

12

16287121

BOLT,Hex, M8 x 20mm, Cl 8.8, Full Thd

6шт.
