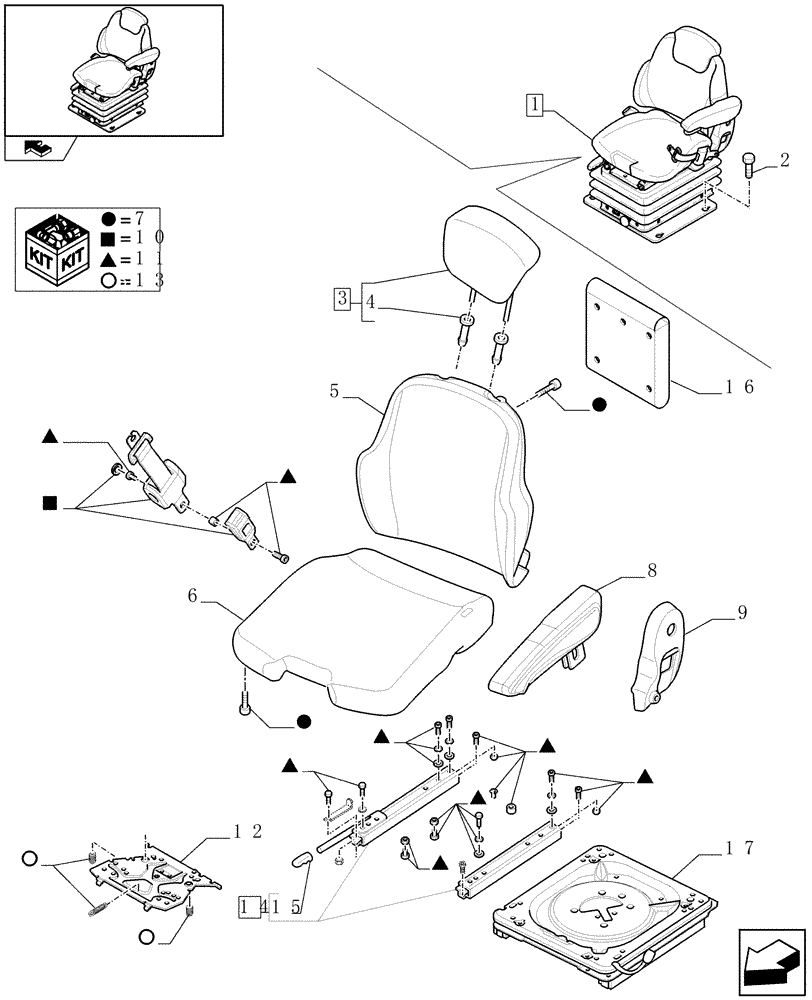

Запчасти Case IH PUMA 140 (1.93.3/01A[01]) - DELUXE SEAT WITH LOW FREQUENCY AIR SUSPENSION, HEATED CUSHIONS, BELT AND SWITCH - BREAKDOWN (10) - OPERATORS PLATFORM/CAB

1

87486990

SEAT

ASSY

1шт.

Includes Operator Presence Switch

1шт.

2

84187826

FLANGE BOLT,Torx Rnd Hd, M8 x 20mm, Cl 8.8, Full Thd

4шт.

3

84191100

SEAT HEADREST

1шт.

4

84191112

GUIDE

1шт.

5

84191204

BACKREST

1шт.

6

84191205

SEAT CUSHION

Incl. 7

1шт.

7

84191200

SET OF PARTS

Incl. 7

1шт.

8

82034988

ARMREST

1шт.

9

87331931

COVER

1шт.

10

84191197

SEAT BELT

1шт.

11

84191194

MOUNTING PARTS

Mounting Parts for P/N 10, 14, 17

1шт.

12

84191141

PLATE

Incl. 13

1шт.

13

84191201

SET OF PARTS

1шт.

14

84191191

REPAIR KIT

1шт.

15

9971715

HANDLE

1шт.

16

47124555

BRIEF CASE

1шт.

17

84191192

SEAT SUPPORT

1шт.
